Proximity Reader

> Access Control > Proximity Reader

SR-01 Stainless Steel Waterproof RFID Reader

Product Model: SR-01
Product Name: Stainless Steel Waterproof RFID Reader
Working Temperature: -30～60℃
Card Reader Type: EM and HID 125KHz

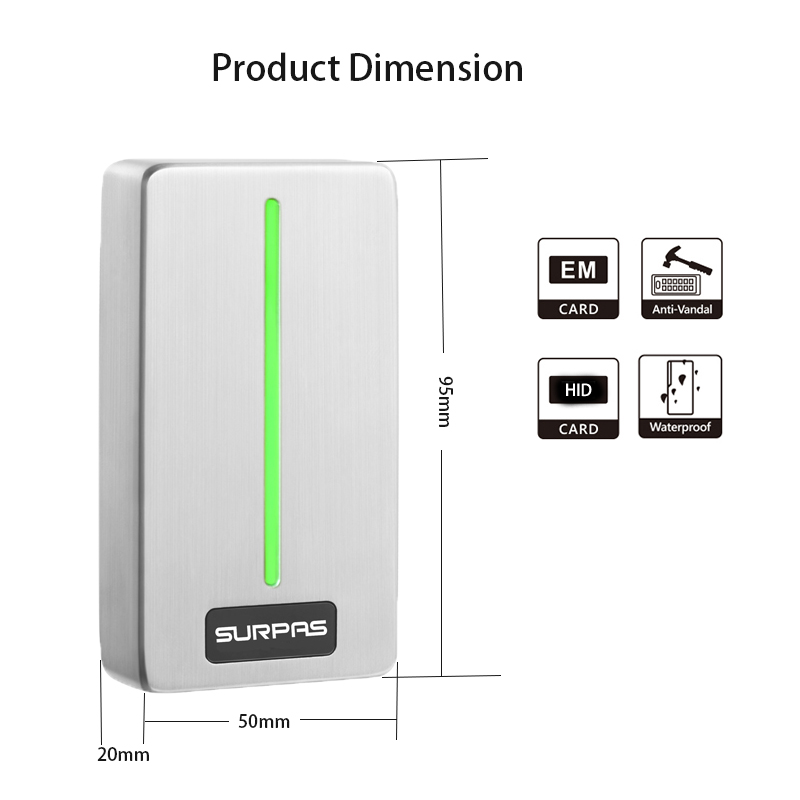

Product Size: L95*W50*H20 mm
Product Weight: 380g

INQUIRY

Description

Specifications

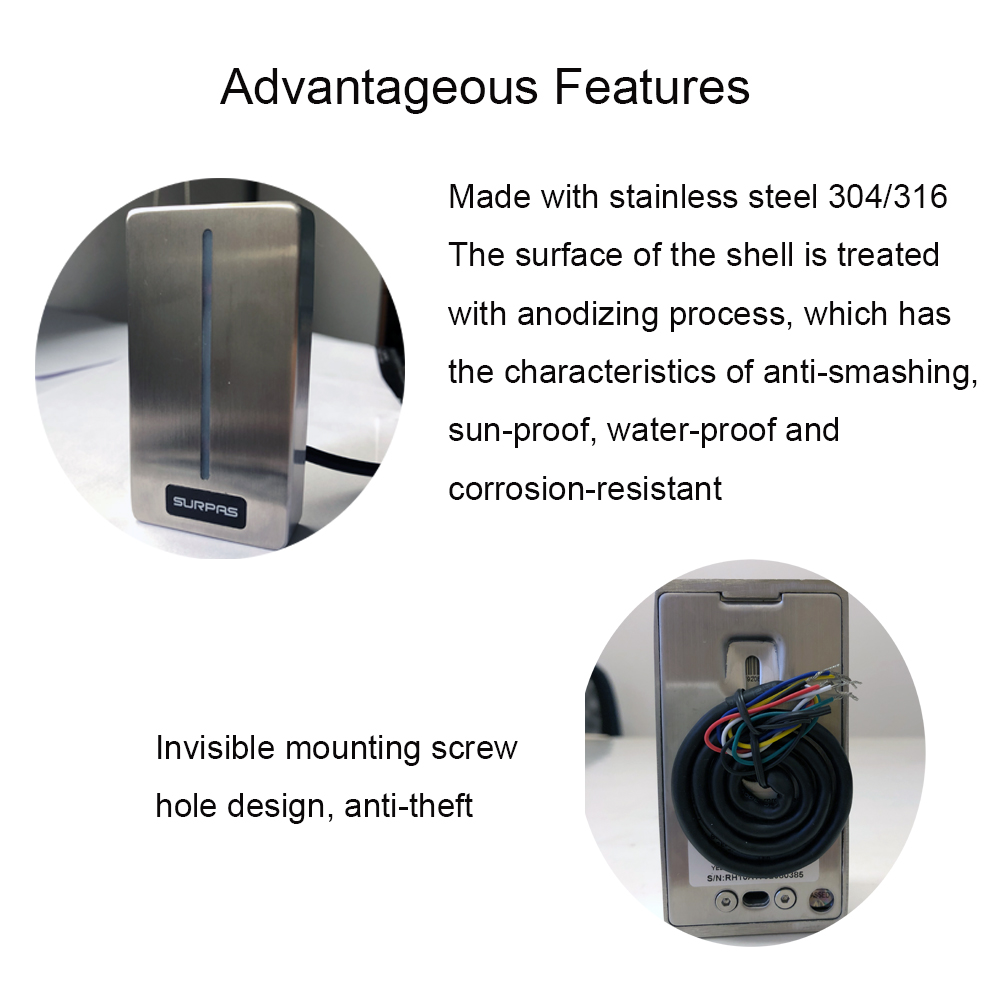

• High strength stainless steel shell, corrosion resistant

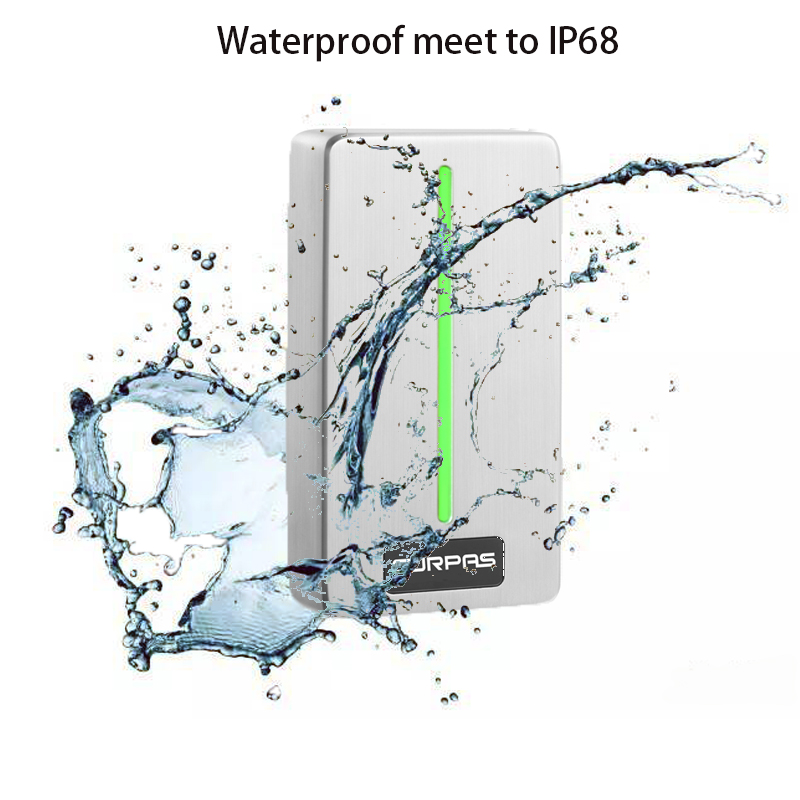

• Waterproof, Conform to IP67

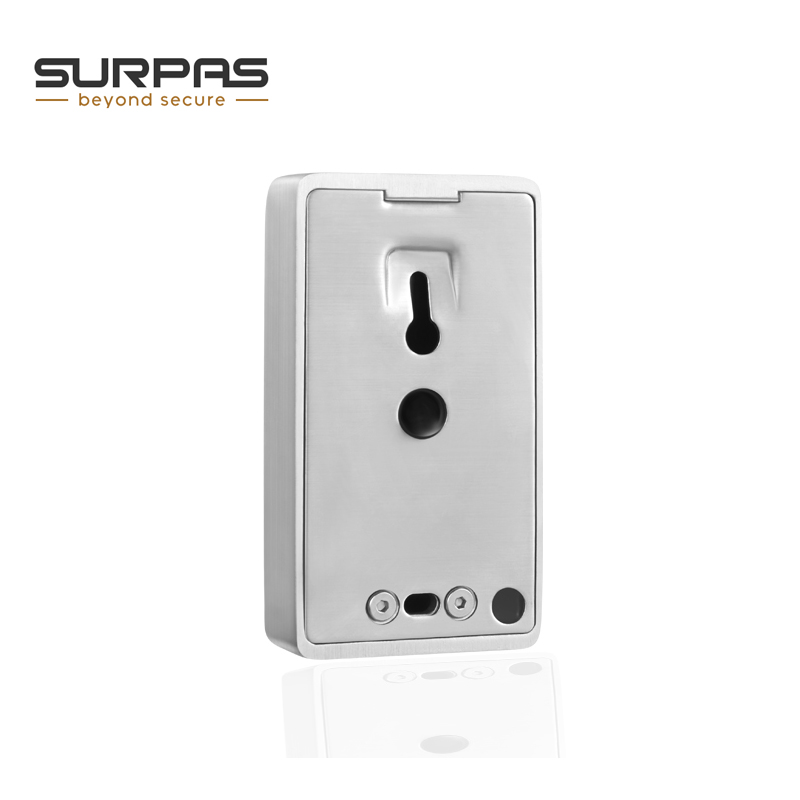

• New design, without visible screws,impossible to break
• Reading 125KHZ EM and HID card (13.56MHz Mifare card can be customized)
• Anti-disassemble by infrared.
• Wiegand 26-37 bit output.

• Transmit Frequency :125KHz
• Read Range: 3~6CM
• Wiegand Output: Wiegand 26~37
• Power Supply: DC6-16V, Linear supply recommended
• Quiescent Current: ≤30mA
• Operating Temperature: -35 ℃-60℃
• Operating Humidity: 0~95%（non-condensing）
• Certificates:CE, RoHs, FCC
• Cable Distand: Wiegand 150m(500ft)(24AWG)
