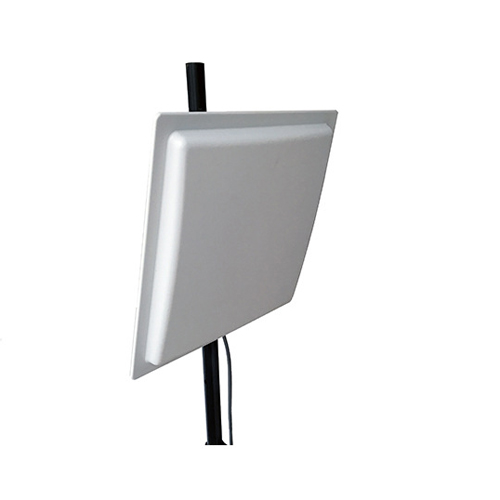

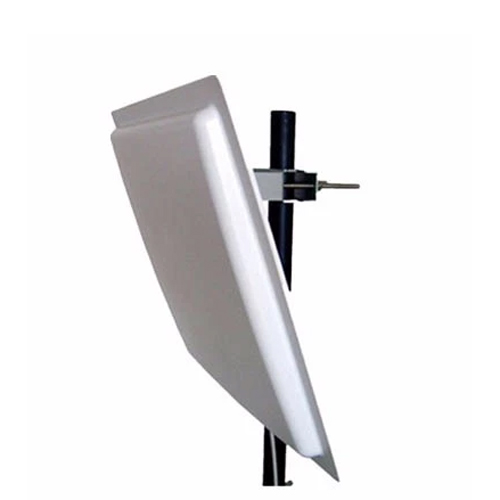

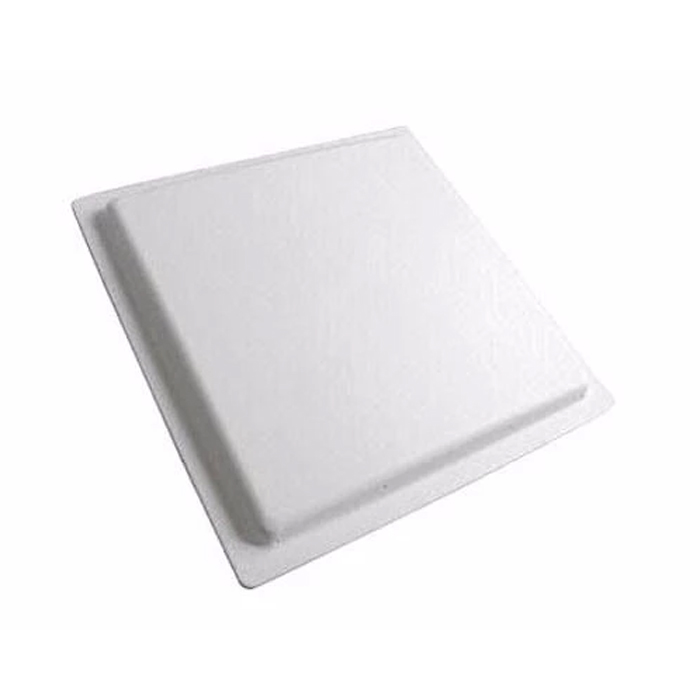

LR-06 860MHz Long Range UHF Reader

INQUIRY
Operating Frequency:860MHz - 920MHz, adjustable, customizable
Wireless interface:EPC CLASS 1 GEN 2
Radio frequency power:30dBm adjustable
Read Range:30m(Tag AZ9662)
Communication Interfaces:RS232,RS485,Wiegand 26
Expanding Interfaces:The WIFI interface (custom), RJ45 and other
Antenna:Built-in 12dBi linear polarization antenna (horizontal/vertical customized)
Power Supply:DC12V input, 25W power adaptor
Trigger interface: A set of trigger input
Reading speed:less than 0.1 seconds
Tag speed range:≤ 100 km / h
Directional card area: antenna configuration with reference configuration
Software: free SDK,API(C++, C#) development kit (can be customized)
Operating Temperature: -40°C~+60°C
Humidity: 5%~95%(non-condensing)
Dimensions:L445*W445*H40mm
Weight:4.5Kg
Waterproof:IP-55
Warranty: 2years

Meet EPC CLASS 1 GEN 2 and ISO 18000-6C technical standards.
Read and write distance of 10-20 meters
Fast reading, the longest reading and writing distance is more than 25 meters.
Transmit power can be set through communication interface to adjust read distance and adapt to complex field requirements.
Can adjust configuration parameters, upload data in time.
Reader has a trigger input. It can identify when triggering events outside,.
Meet green environmental requirements and reduce energy consumption.
Especially for  parking and production line management applications.
Reader is designed to have external nonvolatile storage space.
