Proximity Reader

> Access Control > Proximity Reader

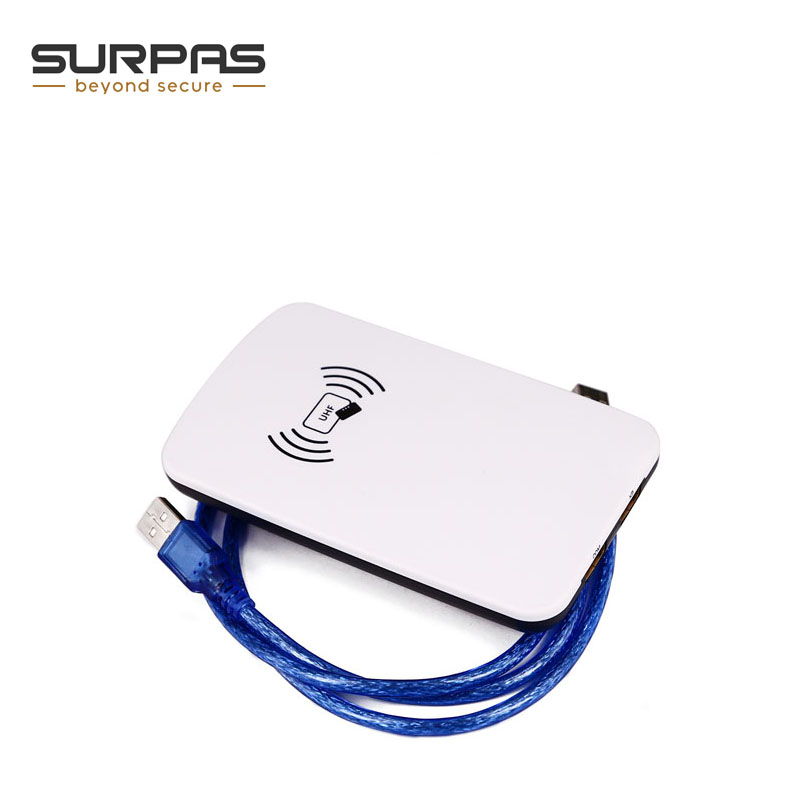

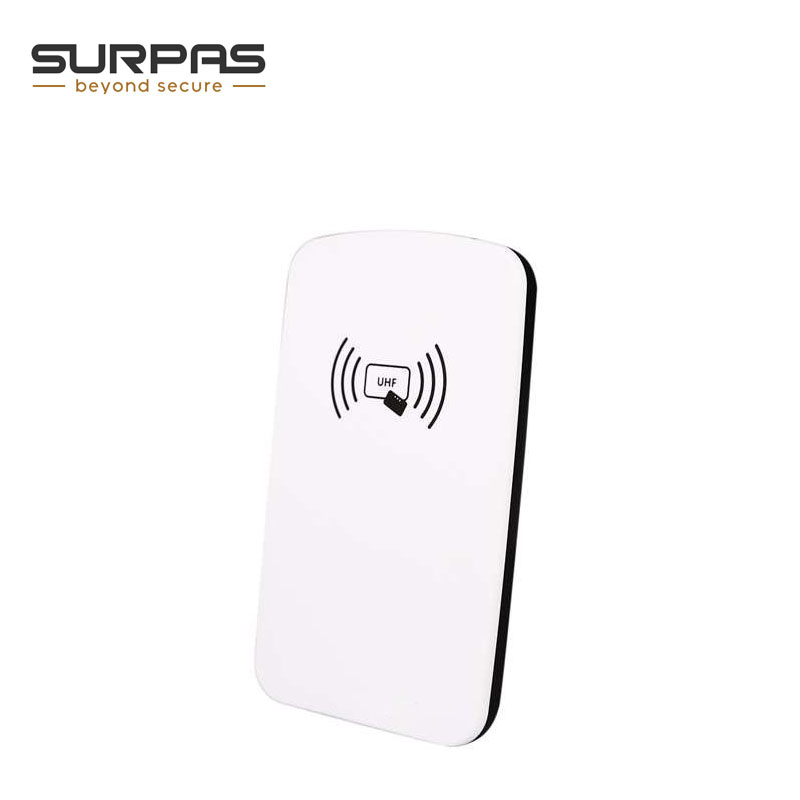

UR-02 860-960MHz Double USB Desktop UHF RFID Card Reader USB Assign Card Reader

UR-02 is Double USB fixed Desktop UHF RFID reader, and the reader's default working frequency band is 860-960MHZ supports ISO18000-6C (EPC C1 GEN2) protocol.

INQUIRY

Description

Features:

Support USB cable firmware upgrade
Support hex, ASCII, Wiegand 26,32,34 etc format output (can be customized )
Support continuously write tag and export/import excel file
Built-in dual feed ceramic antenna, stable reading and writing
Double USB interface ,the input of serial port on the left, the output of keyboard on the right
0-80CM reading distance
Support batch card writing ( EPC, User, password)
Provide C++,C# and java,Android SDK

Technology parameter
Working frequency	902~928MHz; 865~868 MHz
Protocol	EPC C1 Gen2 ISO18000-6C
Antenna gain	3dbi circular polarization
Reading distance	0~80m
Size:	142x85x20MM
material	ABS
interface	USB
Working temperature	-20ºC~75ºC
