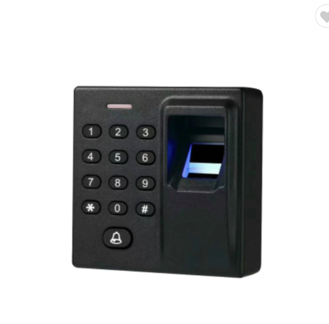

ABS Plastic Fingerprint 125KHz RFID Biometric Scanner with Keypad

Model Number: D1
INQUIRY

One relay
500 fingerprint, 500 card and 500 PIN
3 access modes: fingerprint, EM card, PIN
Pulse mode, toggle mode
PIN length: 4~6 digits
Wiegand 26 bits output
Door bell function

Capacity: each 500pcs for Finger user,PIN code user and card user
USG disk download the date. Card type:125Khz
Fingerprint identification time:<1 second
Working Temperature -25℃~45℃
Working Voltage: DC+12V
Dimension:L88*W88*30H

User Capacity

Fingerprint

Card

PIN

1500

500

500

500

Operating Voltage

Idle Current

Active Current

12V DC

< 50 Ma

< 100 Ma

Fingerprint Reader

Resolution

Identification time

FAR

FRR

Optical fingerprint Module

500 DPI

< 1S

< 0.0001%

< 0.01%

Proximity Card Reader

Radio Technology

Read Range

Industry Standard 26 bit

125KHz Industry Proximity EM Card

1 ~ 5 cm

PIN Reader

4~ 6 digits PIN

Wiring Connections

Relay output, exit button, alarm, Wiegand output,

Door bell

Relay

Adjustable Relay Output Time

Lock Output Load

Alarm Output Load

One (NO, NC, Common)

0 ~ 99 Seconds (5 seconds default)

2 Amp Maximum

5 Amp Maximum

Wiegand Interface

Wiegand 26 bits output

Environment

Operating Temperature

Operating Humidity



-20 oC ~ 50 oC (5 oF ~ 140 oF)

20% RH ~ 90% RH

Physical

Dimensions

Unit Weight

Shipping Weight

ABS Enclosure

8.8L x 8.8W x 3.0H (cm)

350g

400g
