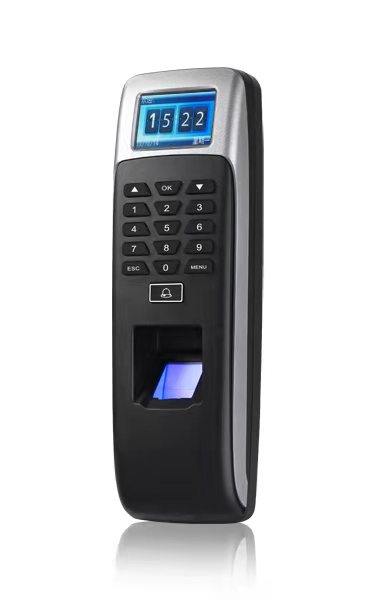

Fingerprint Time Attendance Network Standalone Fingerprint Access Control with Software,
Fingerprint Time Attendance Network Standalone Fingerprint Access Control with Software Home

Fingerprint Time Attendance Network Standalone Fingerprint Access Control with Software

Item No.: CF1200
Model Number : CF2100
INQUIRY
Waterproof Access Control
Network access control / fingerprint time attendance
3000 FP + card +PIN users
100,000 event buffers
Wiegand 26bits output & input
Connect to PC via TCP/IP or USB
C
apacity: each 3000pcs for Finger user,PIN code user and card user
Fingerprint algorithm: 2015 edition Creature 4.0 fingerprint algorithm
Access control mode: 10 times,10 groups,4 open combination
Support for multiple users enter
Working voltage: 10V/12V DC
Support upload and download attendance and user data
Communication methods: TCP/IP/U disk
Resolution : 500 dpi
Fingerpint identify speed: <2 seconds
FRR: 0.01%, FAR: 0.0001%
Standby current < 50 ma
Working current < 400 ma
Working Temperature 0 ℃ - 45 ℃,
Working humidity 20% 80%
Card type: 125Khz card
Language: multilingual version
Size: 185 mm * 60 mm * 30 mm
Name Waterproof Access Control
User Capacity 3000(Fingerprint+Card+PIN)

Operation Voltage +12V
Access Mode: Fingerprint ,Card, PIN, Fingerprint & Card, Fingerprint & PIN
Fingerprint Reader
Resolution
Identification time
FAR
FRR
Optical Fingerprint Module
500DPI
<1S
<0.0001%
<0.01%
Proximity Card Reader
Radio Technology
Read Range
Industry Standard 26 bits
125KHz Industry Proximity EM Card
2~7 cm
PIN Reader 1~8 digits PIN
Wiring Connections Relay Output, Exit Button, DOTL, Alarm, Wiegand output, Door Bell
Communication USB TCP/IP
USB for downloading/uploading
Output
Adjustable Relay Output Time
Lock Output Load
Alarm Output Load
MOS
1-99 Seconds (5 seconds default)
2 Amp Maximum
5 Amp Maximum
Wiegand Interface Wiegand 26 bits Output
Environment
Operating Temperature
Operating Humidity
Indoor
-20℃~ 50℃
20%RH-90%RH
Physical
Dimensions
Unit Weight
Shipping Weight
ABS Enclosure
300g
500g
TOP
