Description
Specification
Specification

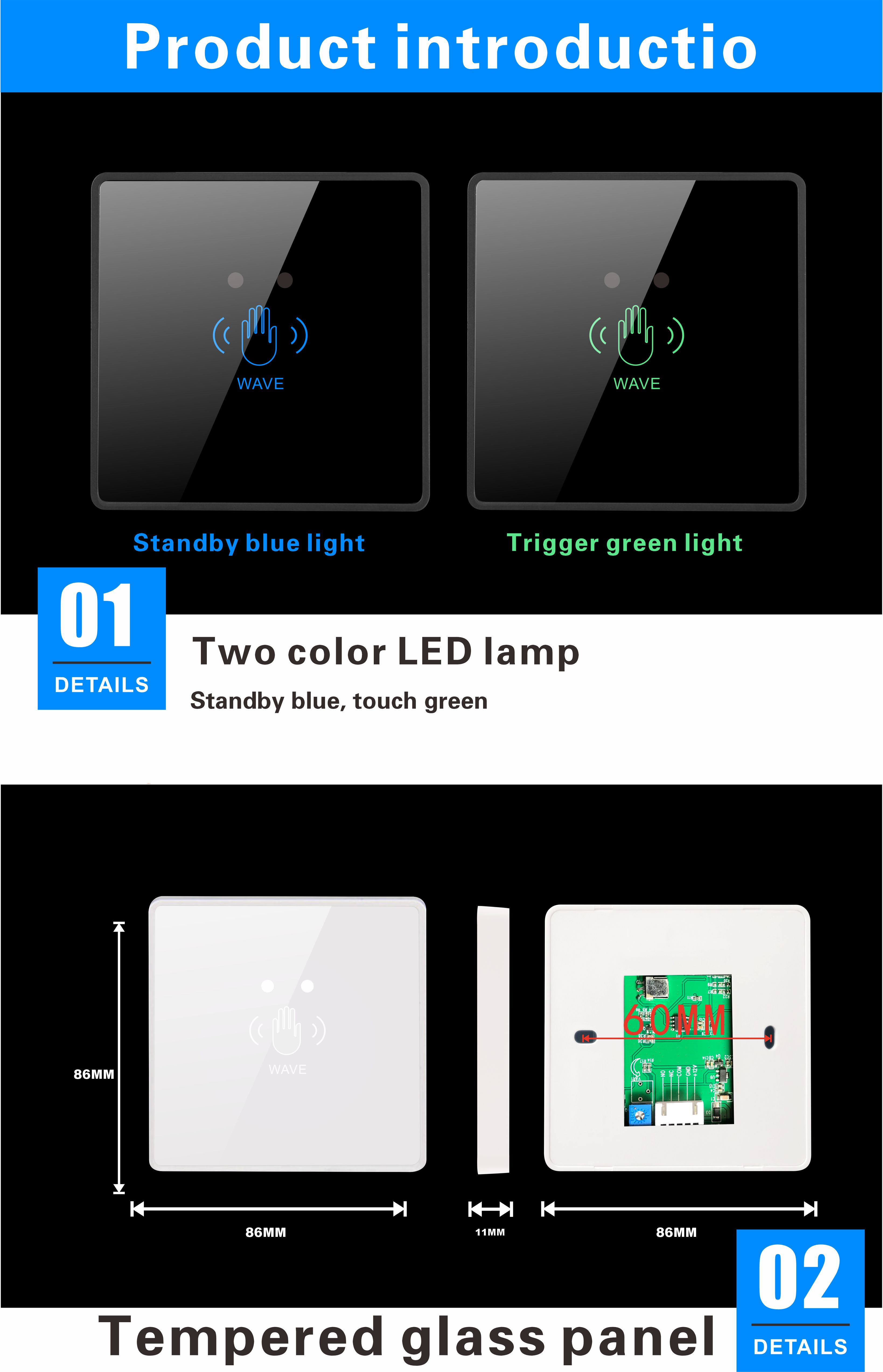

| Button Size: |
86*86*11mm |
| Battery Type: |
CR2032 2PCS |
| Panel Material: |
Acrylic or 5D Tempered Glass |
| Output: |
NO/NC |
| Service Life: |
1000000 Times |
| Sensing Distance: |
1~3cm |
| Application: |
Access Control/Auto Door／Turnstiles |
| Receiver Frequency: |
433.92MHz |
| Wireless Distance |
30 Meter |
| Receiver Specification (Type A) |
| Receiver Dimension: |
42*37*22mm |
| Power Supply: |
DC12V(24V customized) |
| Output: |
NO/NC |
| Service Life: |
1000000 Times |
| Sensing Distance: |
1~3cm |
| Application: |
Access Control/Turnstiles |
| Receiver Frequency: |
433.92MHz |
| Sensitivity: |
3~105dBm |
| Working Mode: |
Self-locking mode/Manual Lock mode |
| Receiver Specification (Type B) |
| Receiver Dimension: |
75*55*25mm |
| Power Supply: |
DC12V(24V customized) |
| Output: |
NO/NC |
| Service Life: |
1000000 Times |
| Sensing Distance: |
1~3cm |
| Application: |
Access Control/Turnstiles |
| Receiver Frequency: |
433.92MHz |
| Sensitivity: |
3~105dBm |
| Working Mode: |
Self-locking mode/Manual Lock mode |
