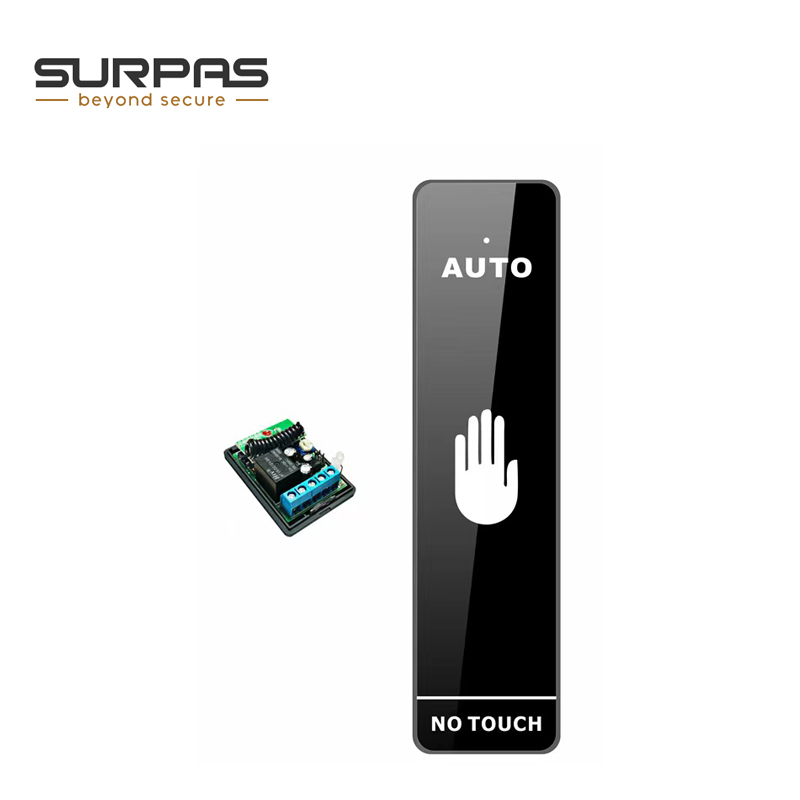

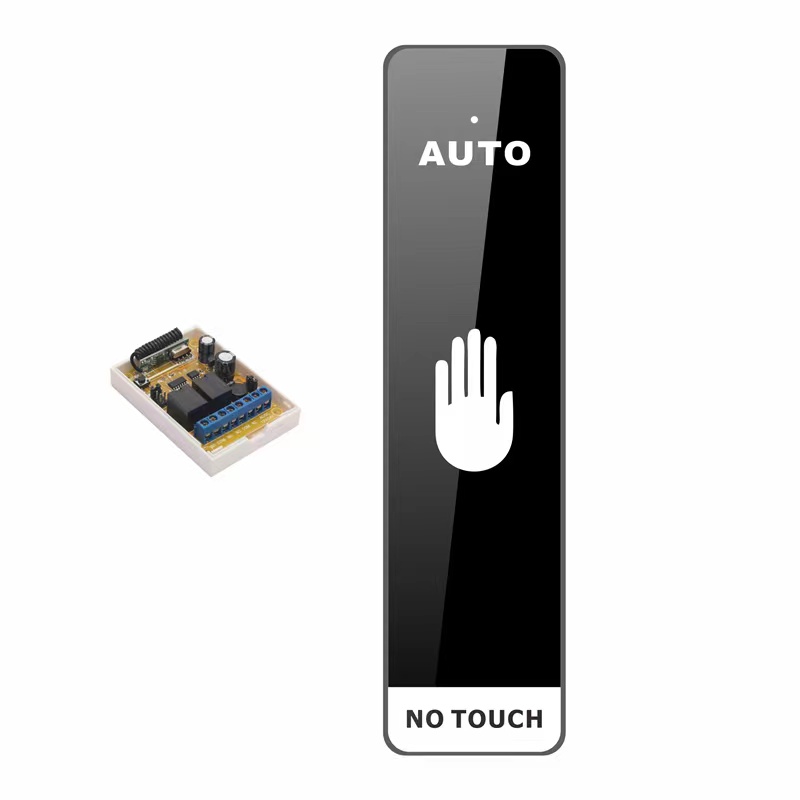

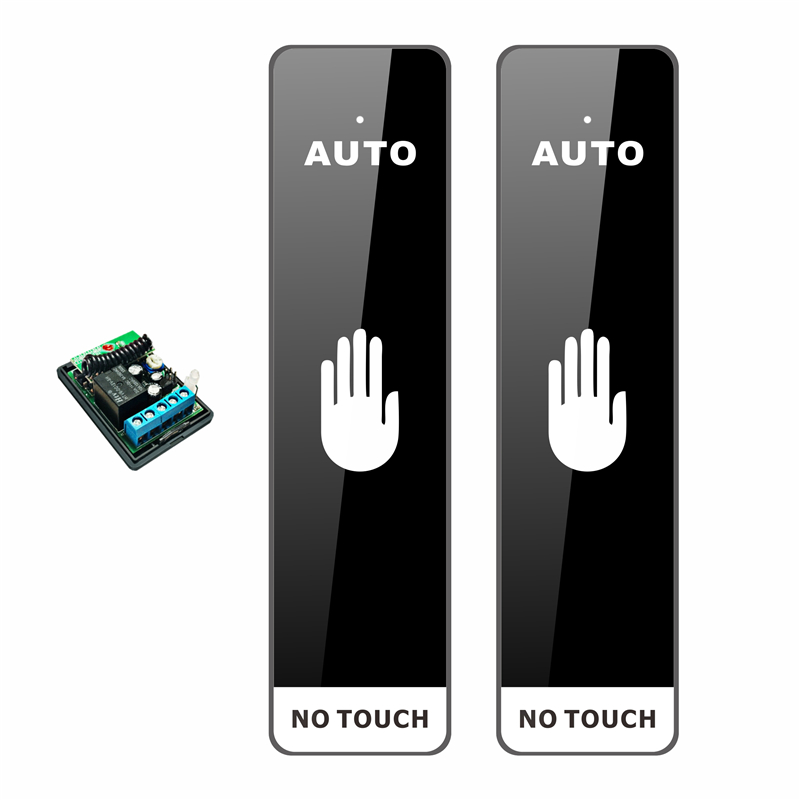

Wireless Infrared sensors No Touch Exit Button

Item No.: EB-012
INQUIRY

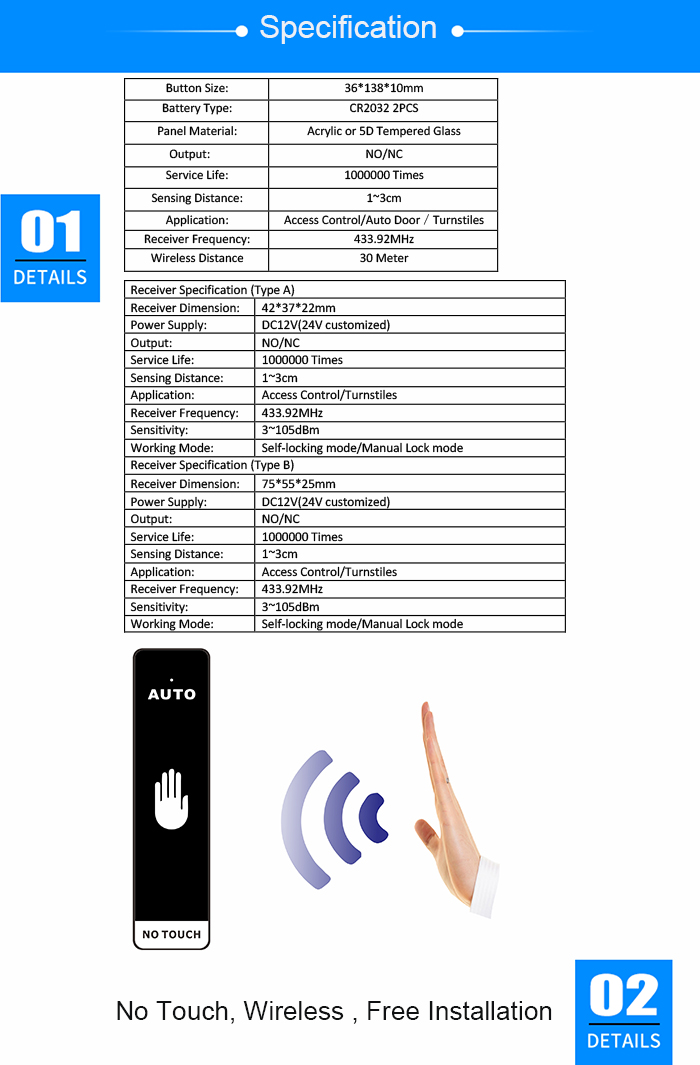

Specification

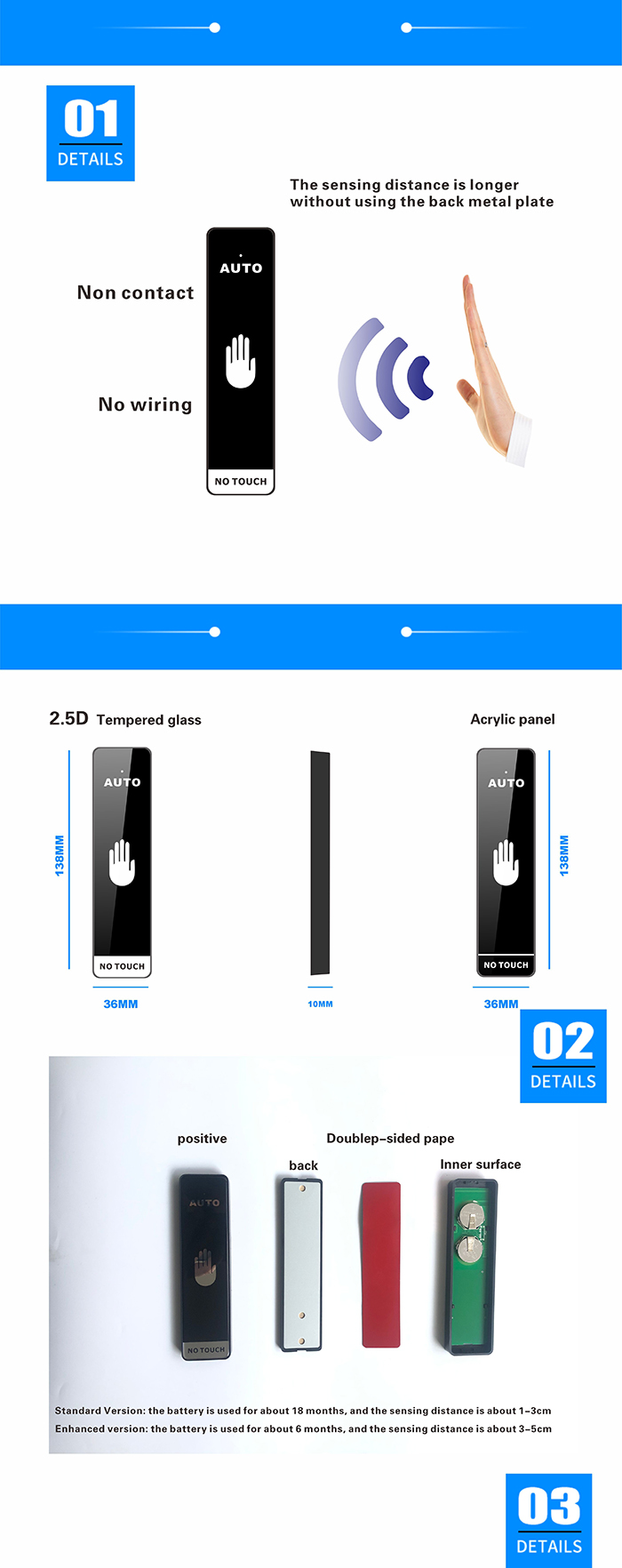

Button Size: 36*138*10mm
Battery Type: CR2032 2PCS
Panel Material: Acrylic or 5D Tempered Glass
      Output: NO/NC
Service Life: 1000000 Times
Sensing Distance: 1~3cm
Application: Access Control/Auto DoorTurnstiles
Receiver Frequency: 433.92MHz
Wireless Distance 30 Meter


Receiver Specification (Type A)
Receiver Dimension: 42*37*22mm
Power Supply: DC12V(24V customized)
Output: NO/NC
Service Life: 1000000 Times
Sensing Distance: 1~3cm
Application: Access Control/Turnstiles
Receiver Frequency: 433.92MHz
Sensitivity: 3~105dBm
Working Mode: Self-locking mode/Manual Lock mode
Receiver Specification (Type B)
Receiver Dimension: 75*55*25mm
Power Supply: DC12V(24V customized)
Output: NO/NC
Service Life: 1000000 Times
Sensing Distance: 1~3cm
Application: Access Control/Turnstiles
Receiver Frequency: 433.92MHz
Sensitivity: 3~105dBm
Working Mode: Self-locking mode/Manual Lock mode
