Standalone Access Control
TR-06B Touch keypad reader Aluminum alloy metal case
  • TR-06B Touch keypad reader Aluminum alloy metal case
  • TR-06B Touch keypad reader Aluminum alloy metal case
  • TR-06B Touch keypad reader Aluminum alloy metal case

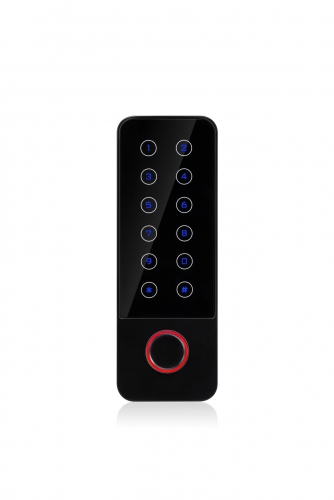

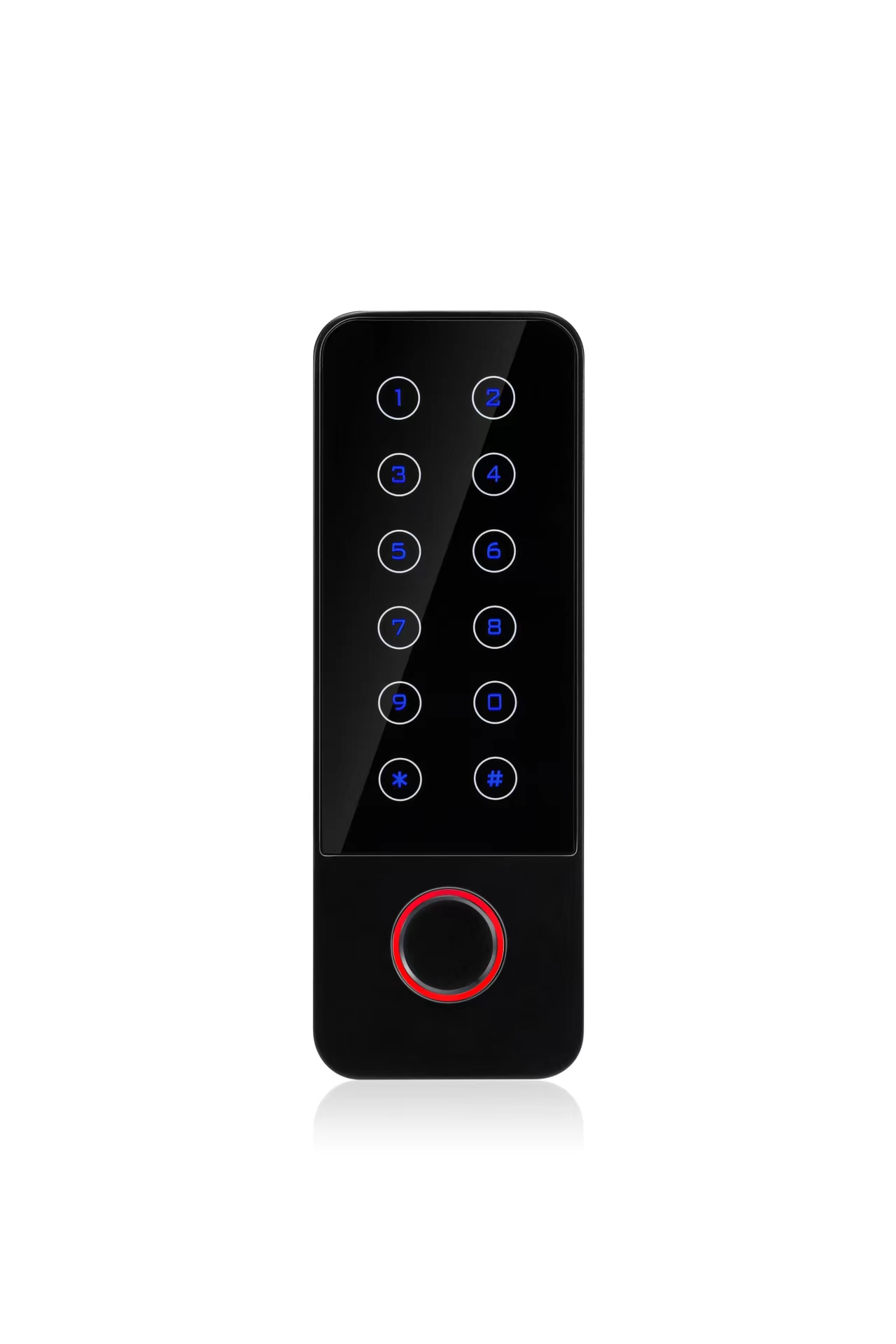

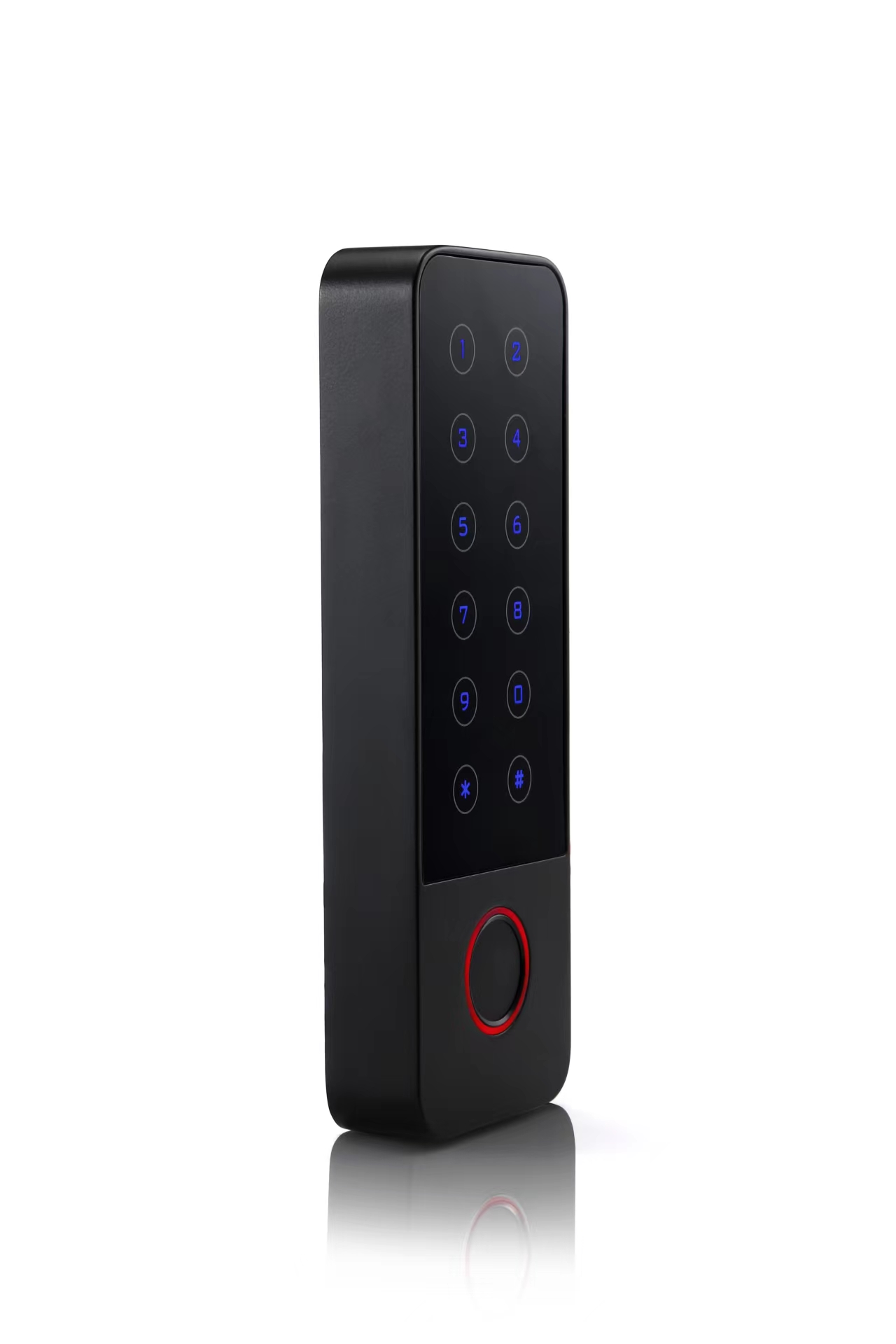

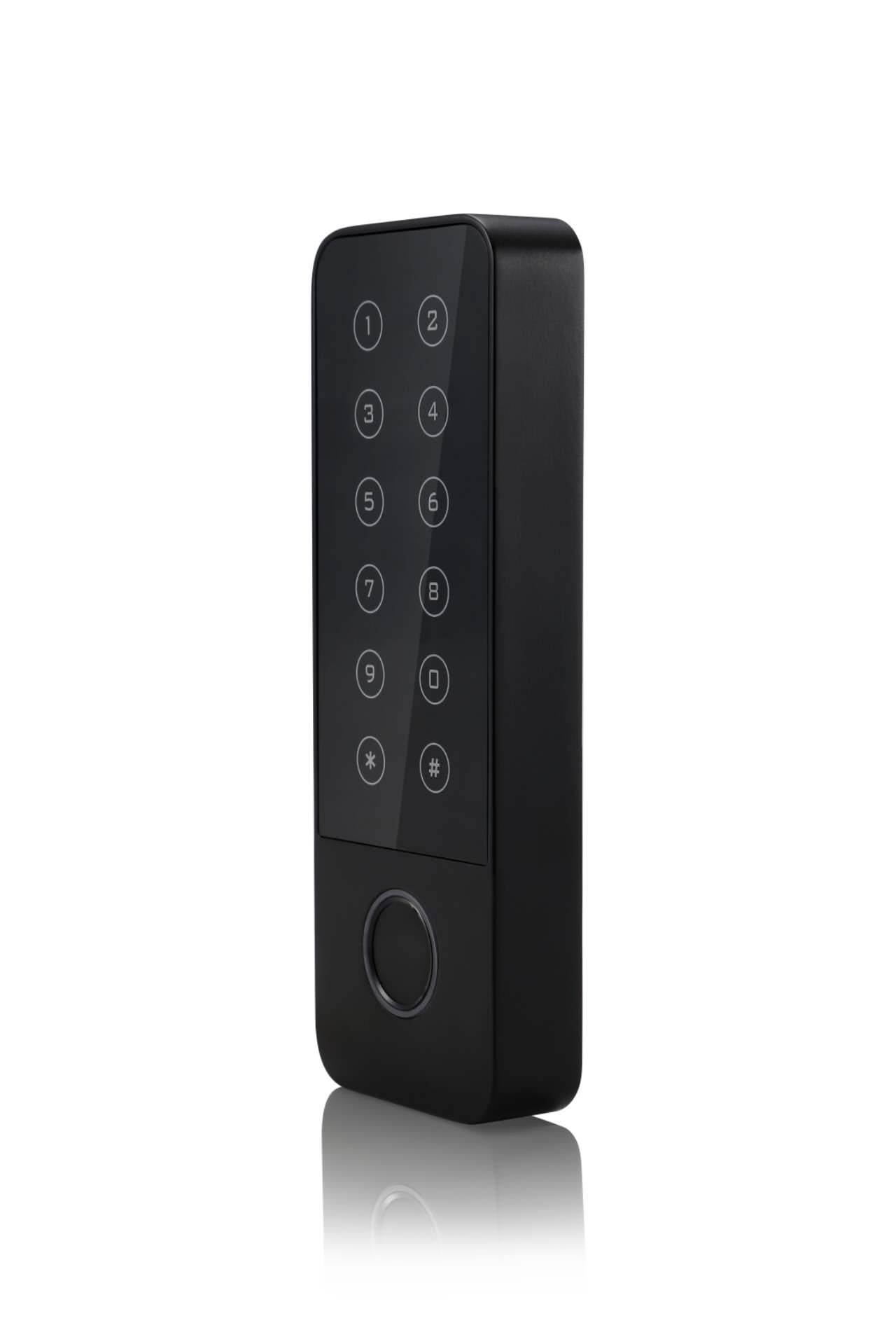

TR-06B Touch keypad reader Aluminum alloy metal case

Product Model: TR-06B
Product Name:Touch Keypads Fingerprint Access Control/Reader
Working Temperature: -30~60℃
Card Reader Type: EM and HID 125Khz or 13.56Mhz
Product Size: L130X46X16mm
Product Weight: 150g
INQUIRY
This is an access control machine with card reading, password and fingerprint functions, zinc alloy shell, explosion-proof and anti-prying, IP66 waterproof level, suitable for users to use outdoors, support 880 fingerprint users and 2120 card or password users, support Fingerprint, card, password for open the door, multi-user open and other functions, it can also be set as an independent card reader, can upload and download card or password user data, with door magnetic detection, tamper alarm and other functions.
• High quality zinc alloy structure.
• Waterproof, Confirm to IP66
• Touch Scratch Proof Acrylic Panel ,blacklit digital key, new fashion design
• Reading 125KHZ EM or 13.56Mhz card
• Access mode, Finger,Card, PIN or card + PIN
• The length of the Pin can be adjusted, 4-6 digits, no need # to end
• Wiegand input & output format: 26-44 bit,56 bit,58 bit
• Product Size: L130*W46*H16mm
• Capacitive Fingerprint Sensor,touch keypad
• One relay,3000 users (880 fingeprint +2120 card and PIN code users)
• Keypad wiegand output: 4bit/8bit/virtual card number
• Can be used as Wiegand reader with LED & buzzer output
• User data can be transferred (except fingerprint users)
• Integrated alarm & Buzzer output
• Built-in light dependent resistor(LDR) for anti tamper
• Backlit keypad,can set automatic OFF after 20 seconds




• Operating voltage: DC12V ()
• Idle current: ≤45mA(DC12V)
• Working current: ≤150mA
• Operating Temperature: -20~60℃
• Alarm output: ≤1A
• User capactity:3000 users (880 finger users,2120 card and PIN users)
• Card type: 125Khz EM or 13.56Mhz Mifare
• Size: 130x46x16mm
• Unit Weight: 350g
• Read range: 3~6cm
• Static Test: 15KV
