SR-05 ABS Waterproof 125KHz EM&HID Reader Home > Access Control > Reader

SR-05 ABS Waterproof 125KHz EM&HID Reader

Product model: R2
Product name: Matted shell waterproof reader
Working temperature: - 40 ~ 60 ° C
Card reader type: EM、HID、IC
Product size: 103 * 48 * 21 mm
INQUIRY

· Plastic matte technic, fully potted, confirms to IP65
· Support EM, HID card(125KHz), or IC, CPU card(13.56MHz,ISO14443A)
· Wiegand 26 output, other format need to be customized, ranging from Wiegand 26 to 37.
· Additional functions: anti-vandal, LED and buzzer controlled via external controller.



Specifications

· Input voltage: DC 12V±10%
· Standby current: ≤30mA
· Operating temp. range: -40℃ ~60℃
· Operating humidity: 0-95% (non-condensing)

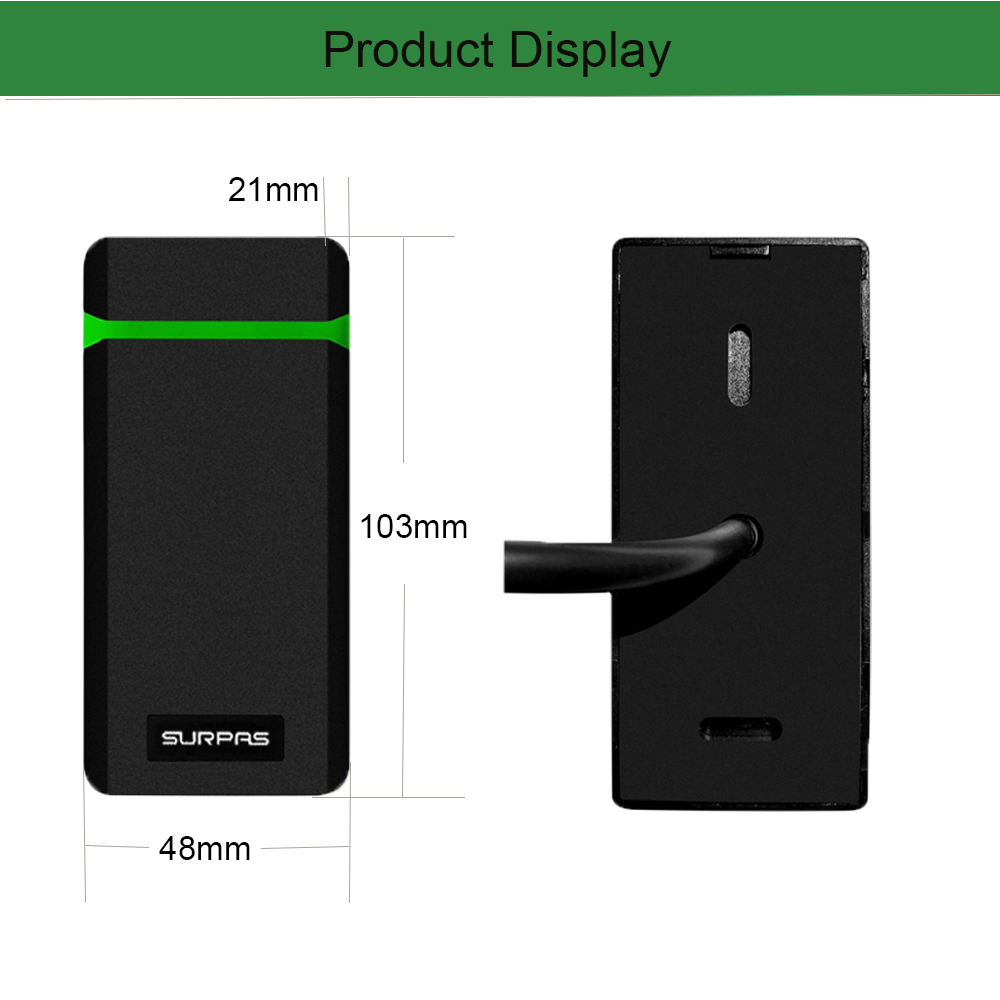

· Dimension: 103mm × 48mm × 21mm


SR-05 EM&HID:
· Card: 125KHz EM card and HID card
· Operating temp. range: -40° C~60° C (-40~140° F)



SR-05M:
· Card: IC, CPU card (13.56MHz, ISO14443A)
· Operating temp. range: -20° C~60° C (-4~140° F)
