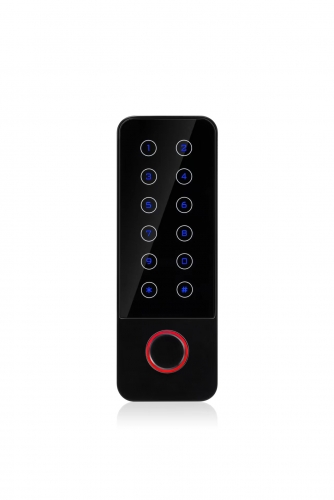

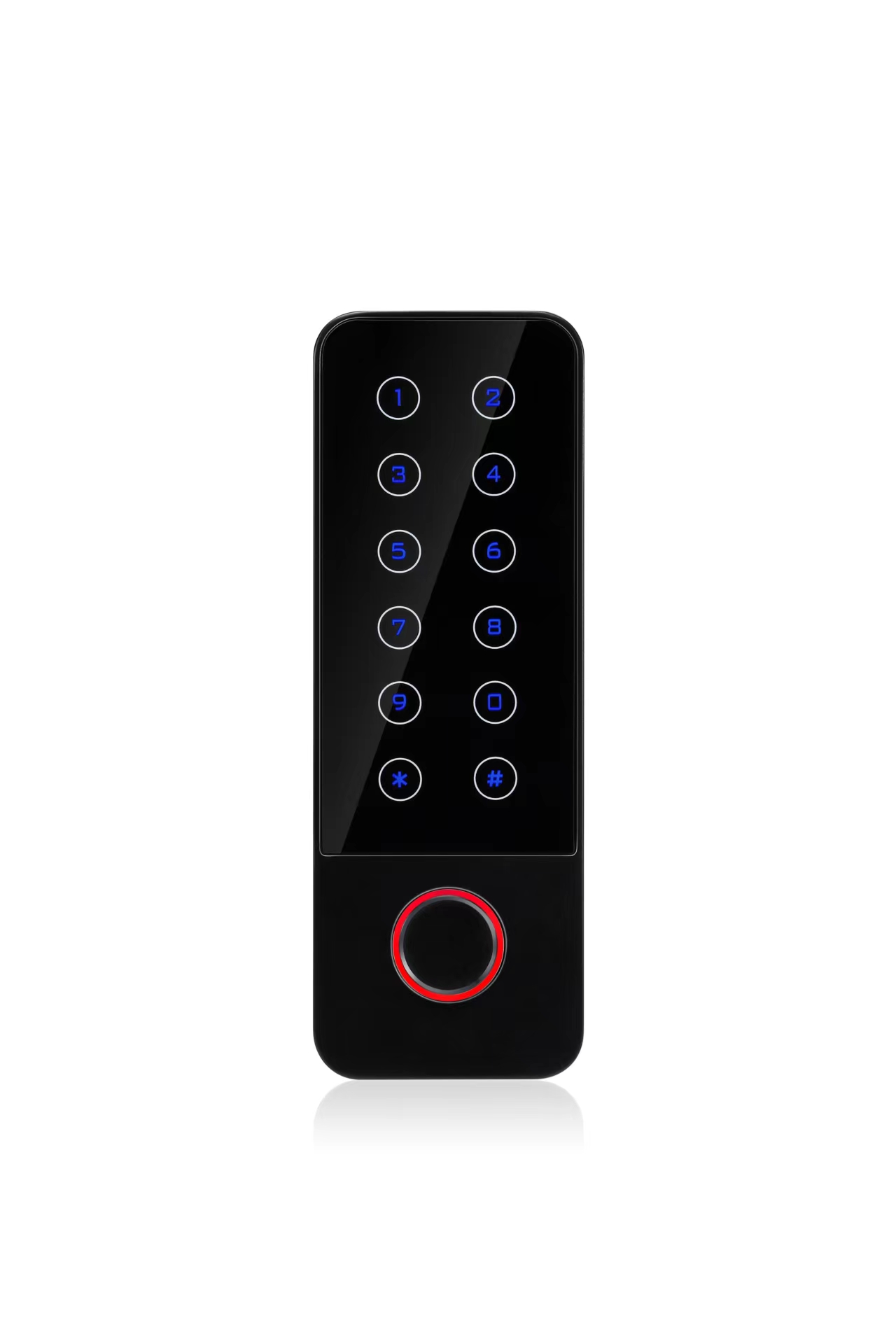

TR-06B Touch keypad reader Aluminum alloy metal case black color

Product Model: TR-06B(Black color)
Product Name:Touch Keypads Waterproof Card Reader
Working Temperature: -30~60℃
Card Reader Type: 125Khz or 13.56Mhz
Product Size: L130*W46*H16mm
Product Weight: 350g
INQUIRY
Description Specifications
• High quality aluminum alloy structure,surface 20um anodizing treatment.
• Waterproof, Confirm to IP67
• Touch Scratch Proof Acrylic Panel ,blacklit digital key, new fashion design

• Reading 125KHZ EM or 13.56 MF card
• Can be connected with any controller which support wiegand 26-37
• Access mode, card, PIN or card + PIN
• The length of the Pin can be adjusted, 4-6 digits, no need # to end
• Wiegand input & output format: 26-37 bit

• Product Size: L130*W46*H16mm
• Operating voltage: DC 10-24V,AC 10-16V
• Idle current: ≤70mA(DC12V)
• Operating Temperature: -30~60℃
• Alarm output: ≤1A
• Read range: 3~6cm
• Static Test: 15KV
