FR-001 Fingerprint Biometric Door Access Control 2.8
  • FR-001 Fingerprint Biometric Door Access Control 2.8
  • FR-001 Fingerprint Biometric Door Access Control 2.8

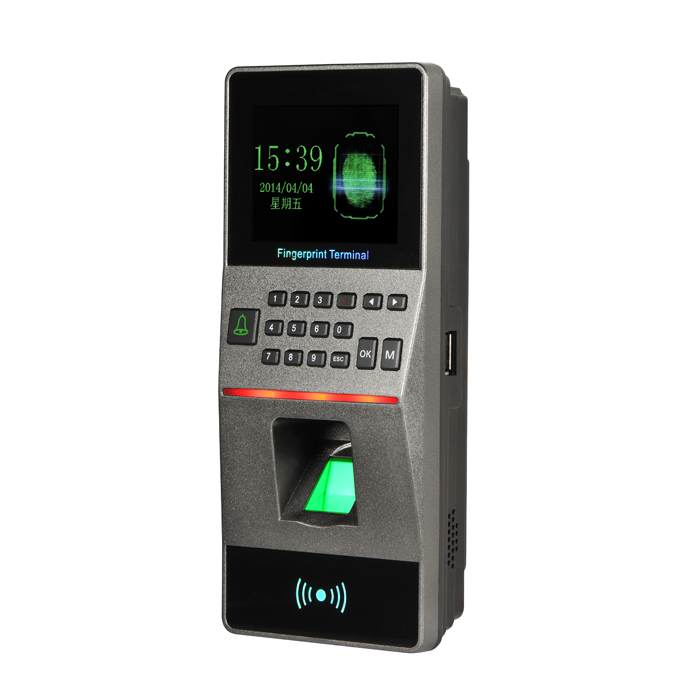

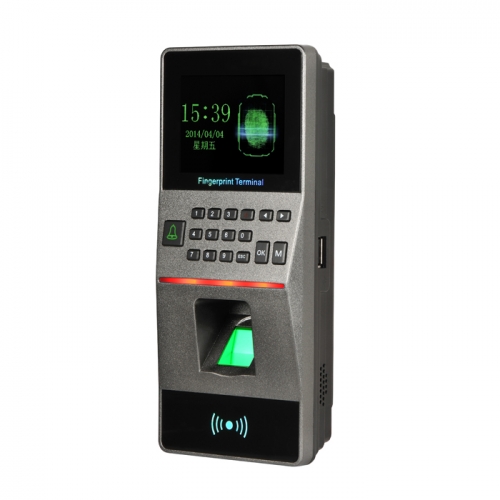

FR-001 Fingerprint Biometric Door Access Control 2.8" TFT Screen Biometric Access Control Machine

Item No.: FR-001
Screen: 2.8" TFT Color Screen Display
Protocol: TCP/IP RS485
Capacity: 3000 Fingerprint Users
Card Type: IC Or EM&HID Card
INQUIRY

Access control function, time period, group, lock combination Settings. Complex access control logic support.

Attendance function, automatic statements, departments, personnel management.

Support card, password, fingerprint authentication.

Can work offline, but also to achieve complex access control network monitoring.

Real-time fingerprint images.

Verify that the speed is less than 1s.

It was not FAR < 0.001%.

Does the FRR < 0.01%.

3, 000 pieces in capacity

There are 80,000 records.

TCP/IP, RS485 networking.

• 2.8" color TFT screen display
• TCP/IP and RS485 communications
• Support fingerprint, ID card and MF card
• Capacity to store 3000 fingerprints and 100,000 recordings
• Support uploading and downloading record by inserting the USB-disk
• Using optocoupler to isolate signal, for lightning for protection and pressure resistant
• Support alarm output
• Support door bell function
• Anti-tamper

• Working Voltage:DC9V-12V
• Dimension: L187*W81*H43mm
• CPU: ZEM720, 400MHz
• Memory: 128MB flash + 32MB RAM
• FingerReader: small optical fingerprint sensor
• Velocity Ratio: 3,000 matches in 1 second
• Fingerprint Capacity: 3000 fingerprints
• Recording capacity: 100,000
• Card Capacity: 10000
• RF Card: EM(125 KHz)/for Mifare(13.56 MHz), selectable
• Communication: TCP/IP, RS485 ,Wiegand Input/Output, USB OTG,
• U disk Function: Support uploading and downloading
• Wiegand: Weigand26 and Weigand34. one way of input/output
