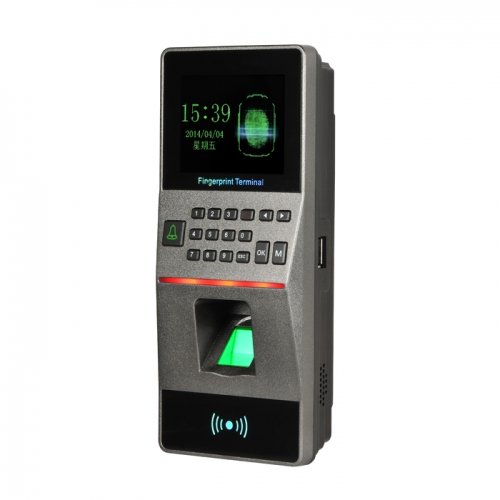

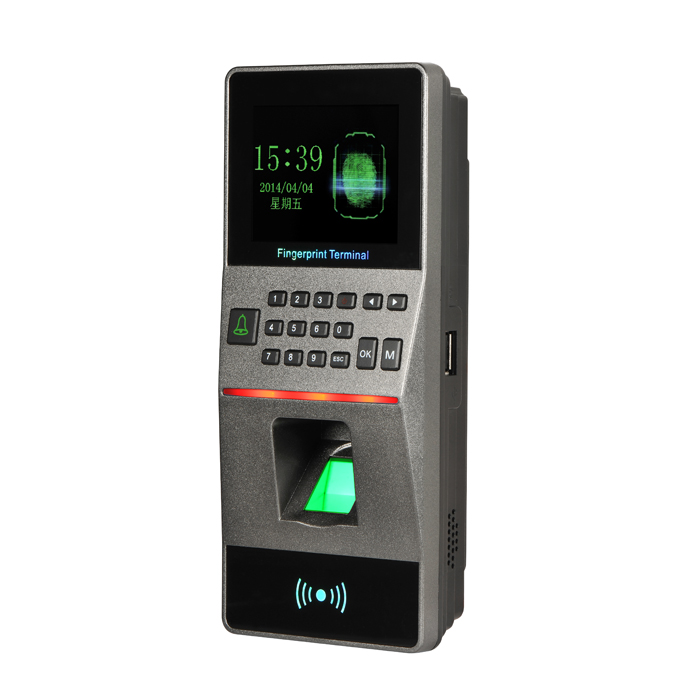

FR-001 Fingerprint Time Attendance
  • FR-001 Fingerprint Time Attendance

FR-001 Fingerprint Time Attendance

2.8" color TFT screen display
TCP/IP and RS485 communications
Support fingerprint, ID card and MF card
Capacity to store 3000 fingerprints and 100,000 recordings
Support uploading and downloading record by inserting the USB-disk
Using optocoupler to isolate signal, for lightning for protection and pressure resistant
Support alarm output
Support door bell function
Working Voltage:DC9V-12V
Dimension: L187*W81*H43mm
CPU: ZEM720, 400MHz
Memory: 128MB flash + 32MB RAM
FingerReader: small optical fingerprint sensor
Velocity Ratio: 3,000 matches in 1 second
Fingerprint Capacity: 3000 fingerprints
Recording capacity: 100,000
Card Capacity: 10000
RF Card: EM(125 KHz)/for Mifare(13.56 MHz), selectable
Communication: TCP/IP, RS485 ,Wiegand Input/Output, USB OTG,
U disk Function: Support uploading and downloading
Wiegand: Weigand26 and Weigand34. one way of input/output
