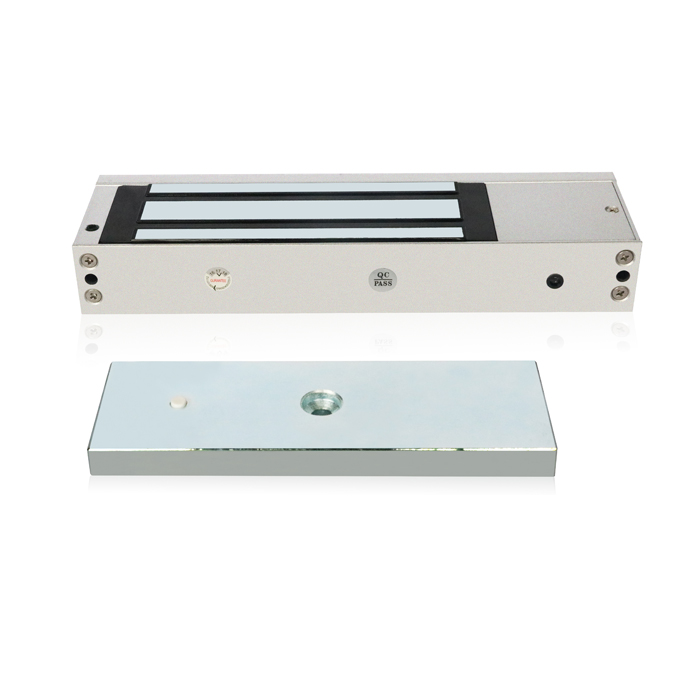

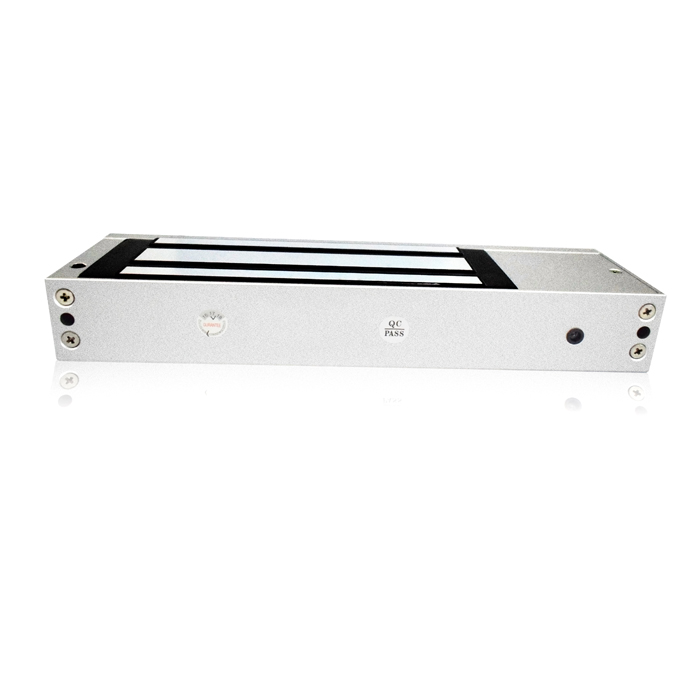

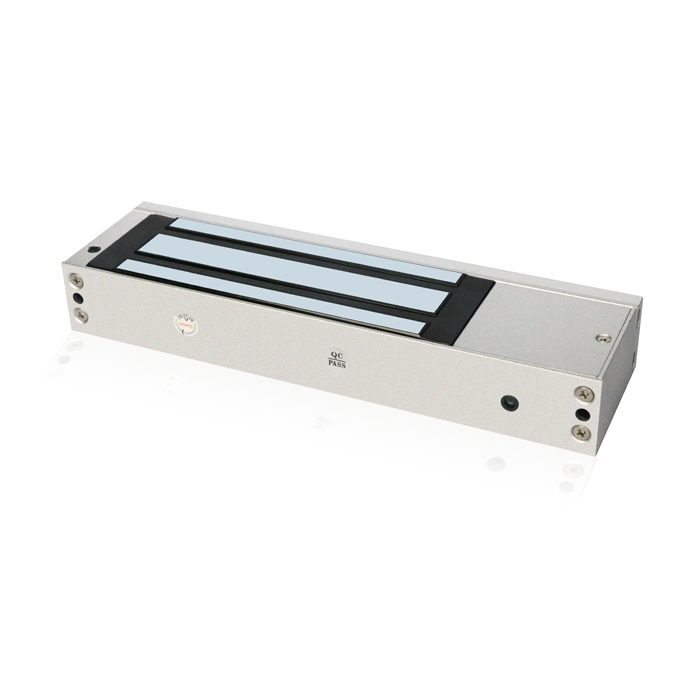

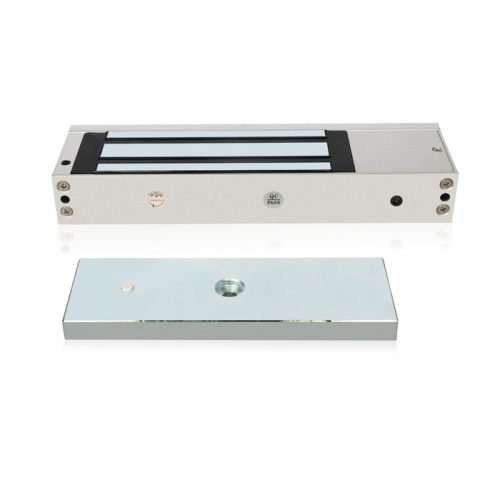

EM-500S Single Door Electromagnetic Lock with LED And Lock Status Signal Output

INQUIRY
Quick Details

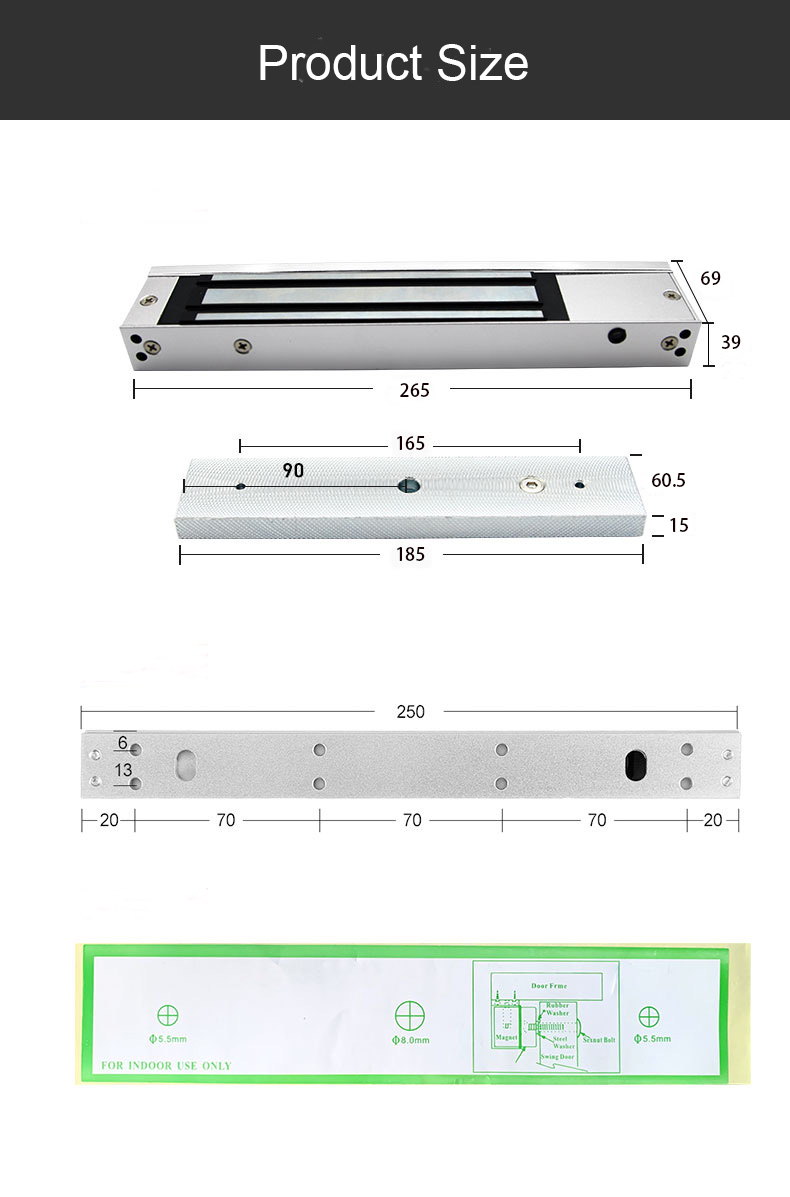

• Lock Dimension:
L265*W69*H39mm
Armature Plate Dimension: L185*W61*H15mm
Input Votage DC12V+10% or DC24V+10%
Working Current: 12V/660mA or 24V/330mA

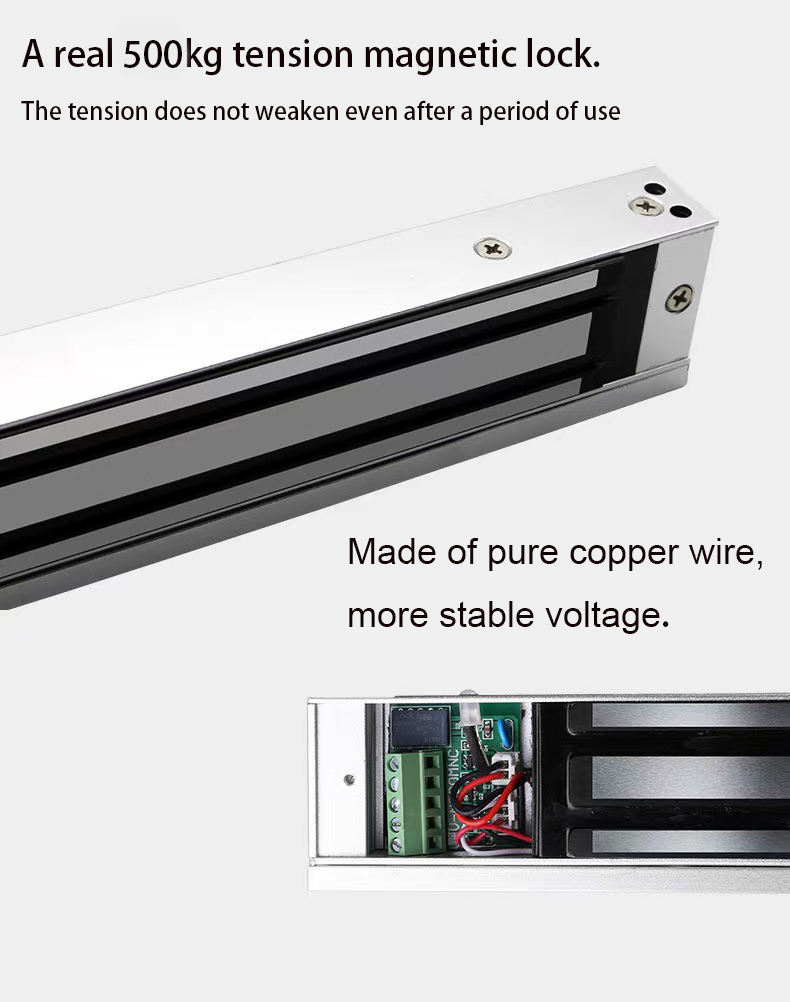

Holding Force:500KG(1200Lbs)
Surface Temp: ≤ +20℃ (Based on ambient temperature)
Operating Temp:  -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Weight: 4.4KG;
Bracket Optional: B -500ZL/500Z/500L
LED Status: Red(Open),Green(Close)
Door Status signal output for optional
Time delay seting: 0/3/6/9 seconds for optional
