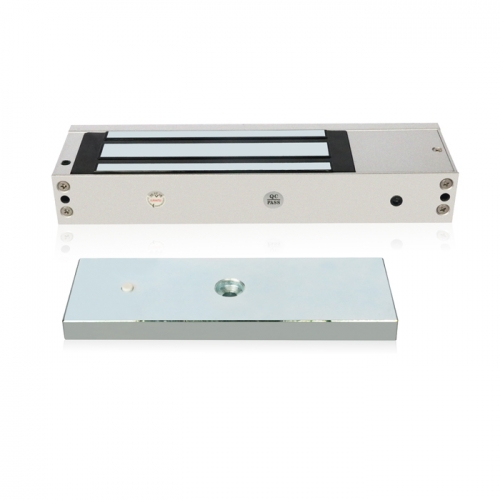

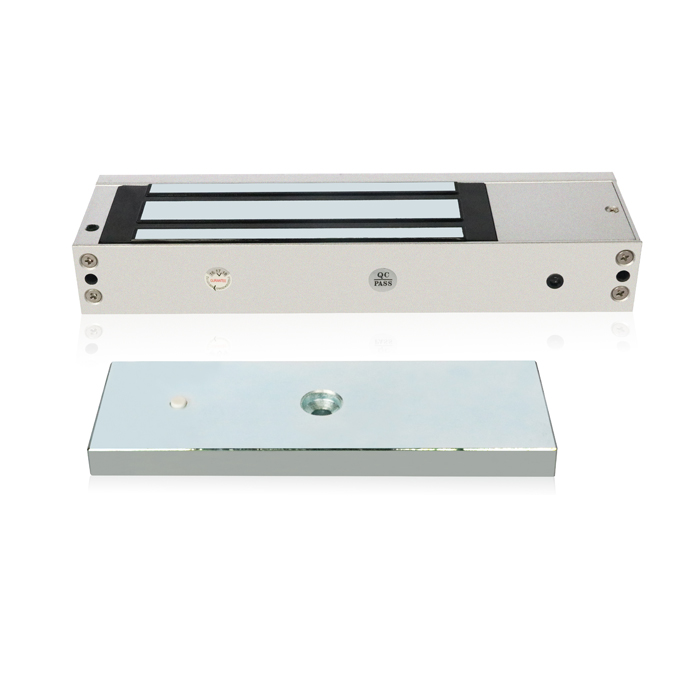

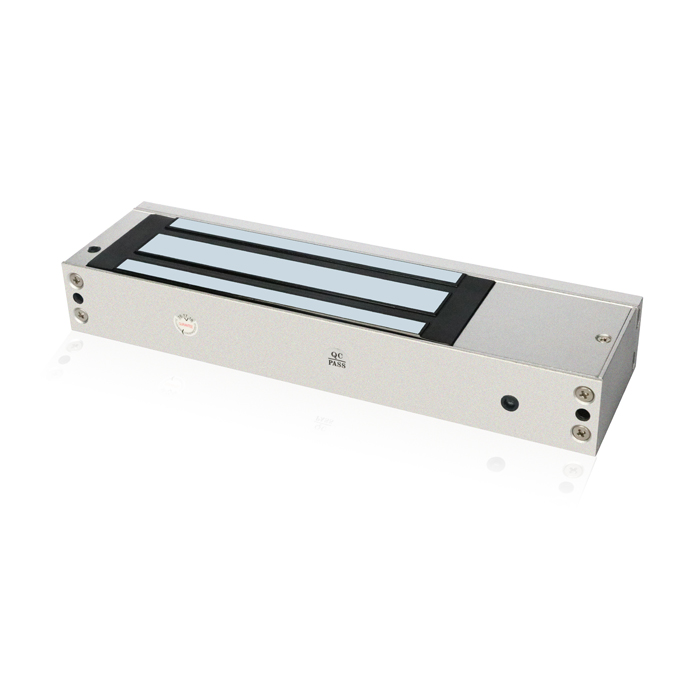

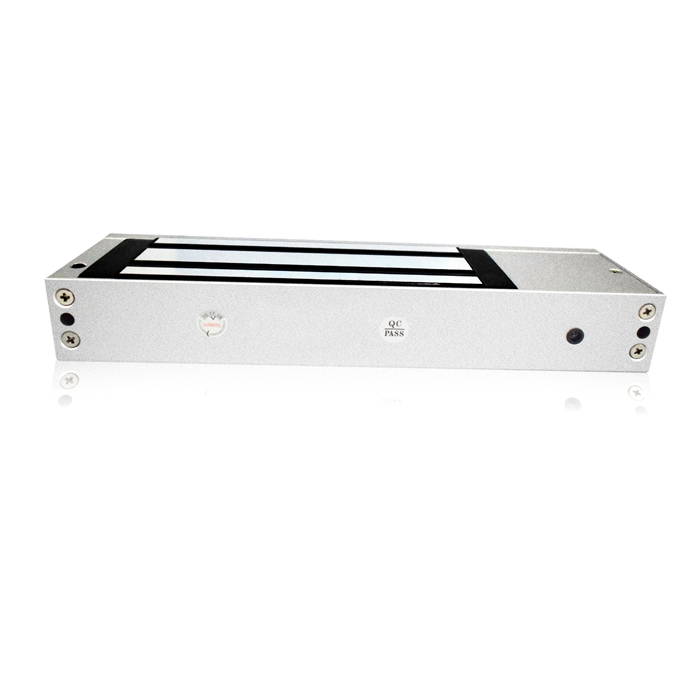

EM-500 Single Door Electromagnetic Lock with LED
EM-500 Single Door Electromagnetic Lock with LED EM-500 Single Door Electromagnetic Lock with LED EM-500 Single Door Electromagnetic Lock with LED

EM-500 Single Door Electromagnetic Lock with LED

INQUIRY
Description
Quick Details

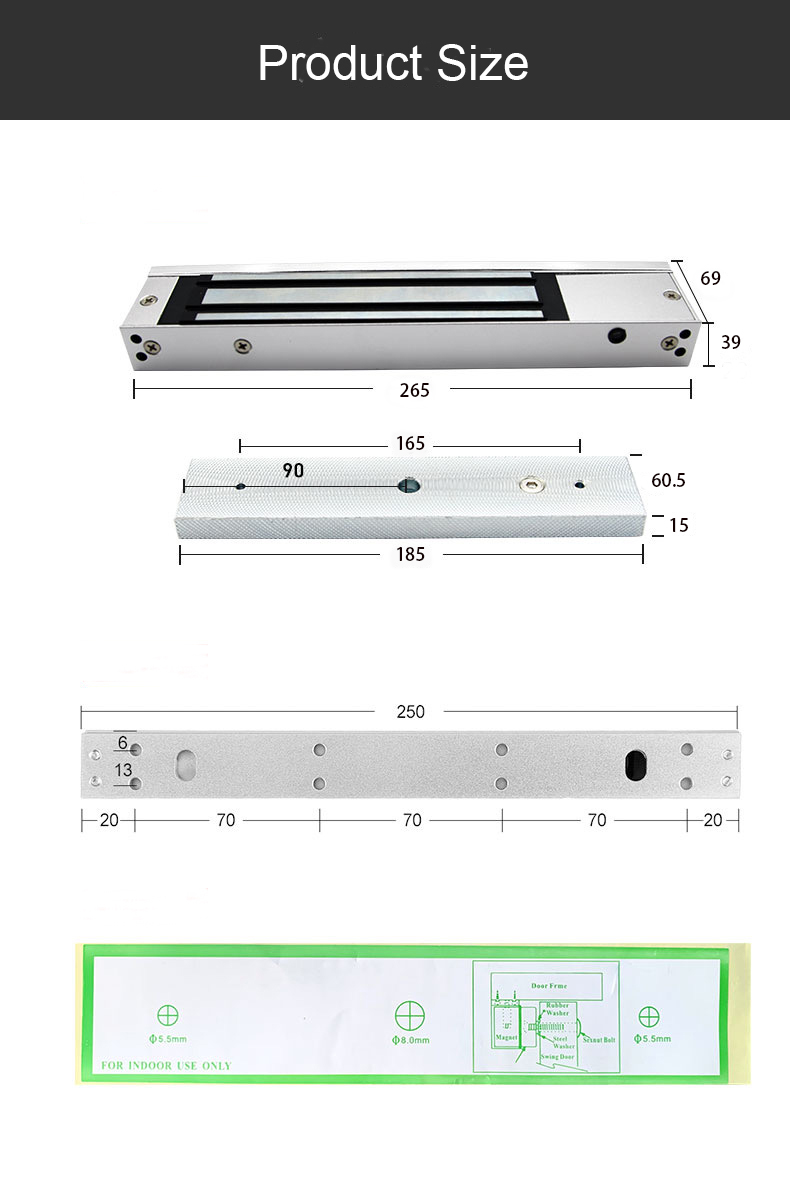

• Lock Dimension:L265*W69*H39mm
• Armature Plate Dimension: L185*W61*H15mm
• Input Votage DC12V+10% or DC24V+10%
• Working Current: 12V/660mA or 24V/330mA

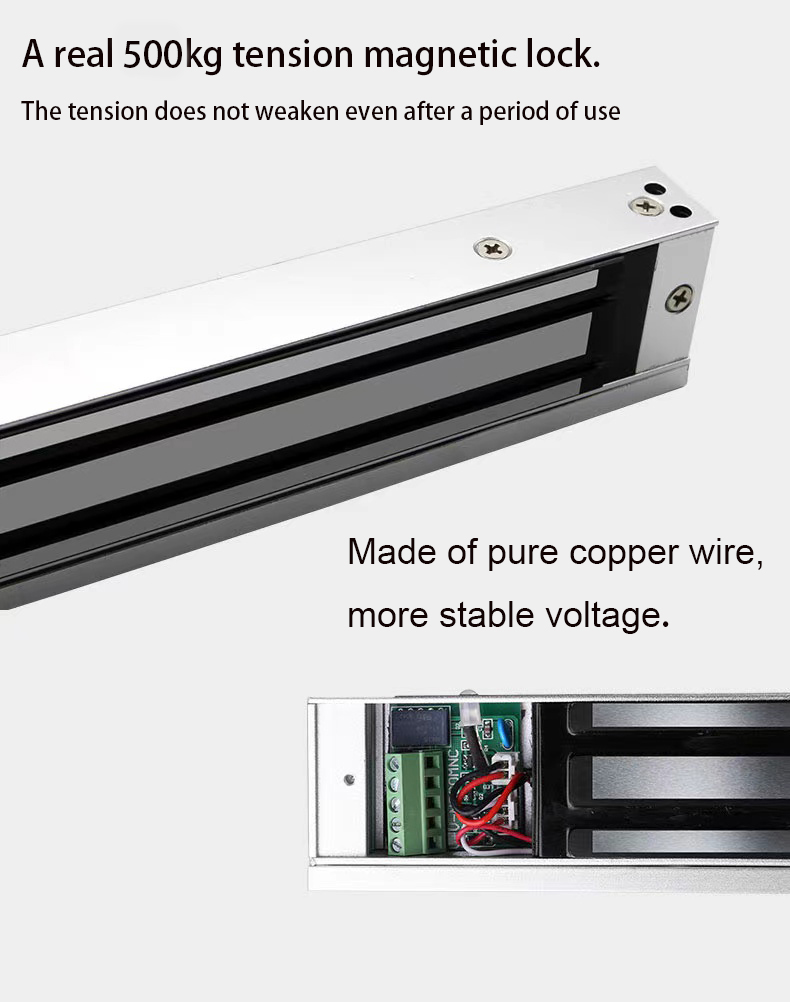

• Holding Force:500KG（1200Lbs)
• Surface Temp: ≤ +20℃ (Based on ambient temperature)
• Operating Temp:  -10~+55℃(14-131F);
• Humidity: 0~90%(non-condensing)
• Weight: 4.4KG;
• Bracket Optional: B -500ZL/500Z/500L
• LED Status: Red(Open),Green(Close)
• Door Status signal output for optional
• Time delay seting: 0/3/6/9 seconds for optional
