Electromagnetic Lock

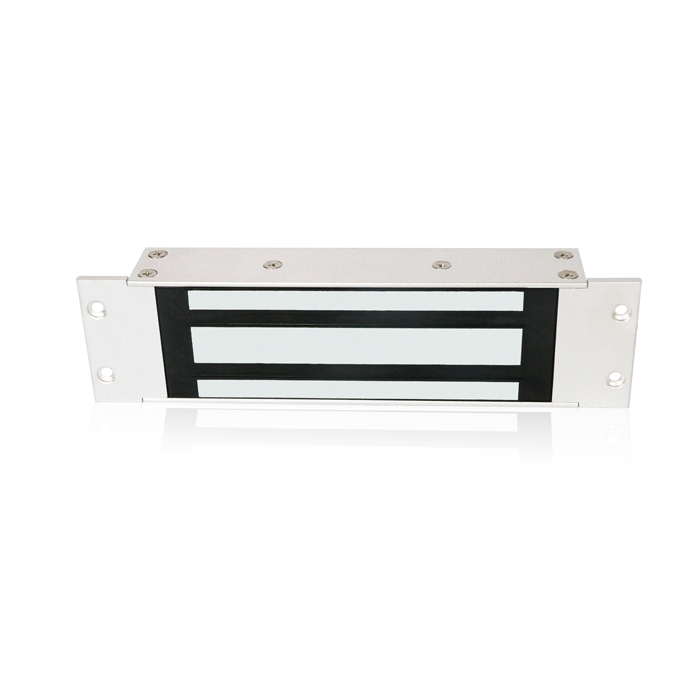

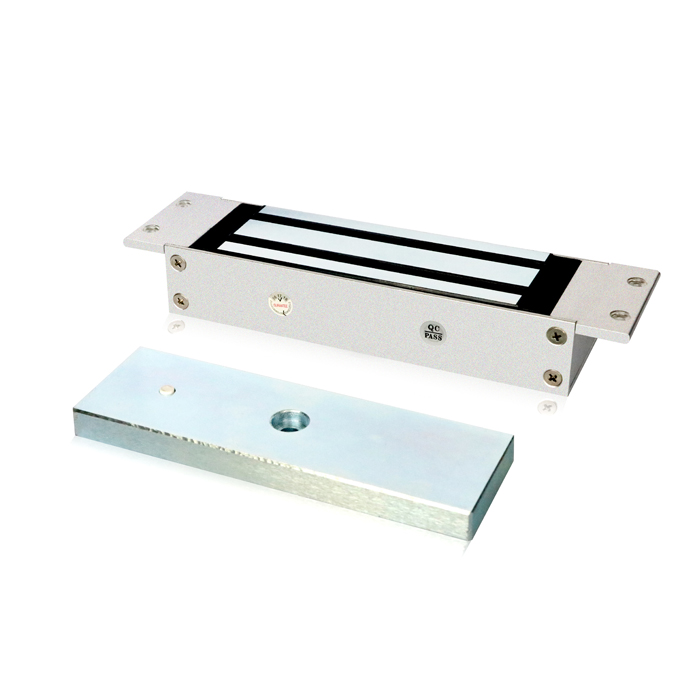

EM-500MS Single Door Electromagnetic Lock with Mortise Mount And Lock Status Signal Output
  • EM-500MS Single Door Electromagnetic Lock with Mortise Mount And Lock Status Signal Output
  • EM-500MS Single Door Electromagnetic Lock with Mortise Mount And Lock Status Signal Output

EM-500MS Single Door Electromagnetic Lock with Mortise Mount And Lock Status Signal Output

INQUIRY
Quick Details

Lock Dimension:L254*W65.8*H38.8mm
Armature Plate Dimension: L185*W60*H13mm
Input Votage DC12V+10% or DC24V+10%
Working Current: 12V/660mA or 24V/330mA
Holding Force:500KG(1200Lbs)
Surface Temp: ≤ +20℃ (Based on ambient temperature)
Operating Temp:  -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Weight: 4.4KG
Bracket Optional: BK -500Z
LED Status: Red(Open),Green(Close)
Door Status signal output
