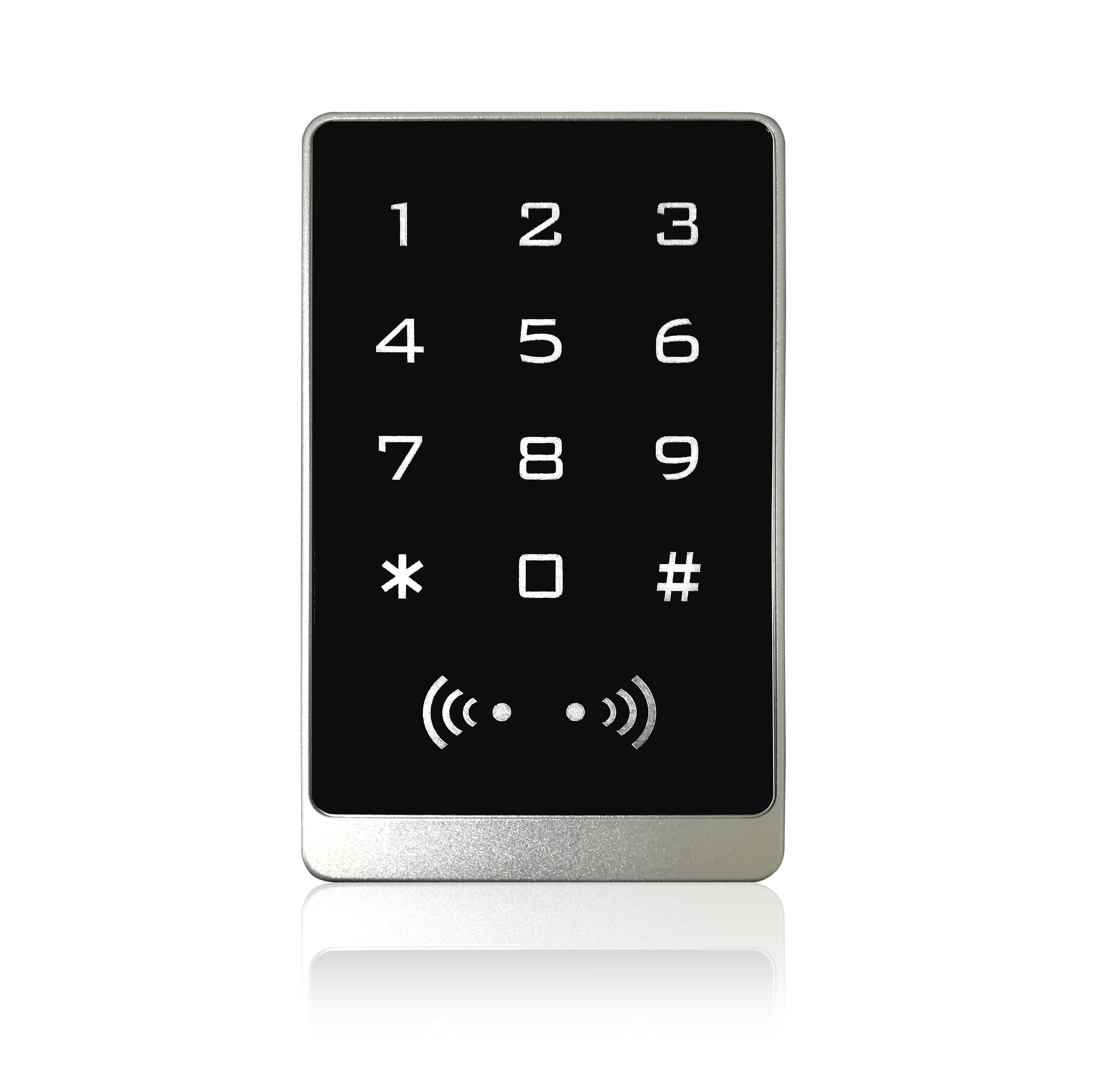

AT2 Touch keypad standalone access control and reader Aluminum alloy case

Product Model: AT2
Product Name:Touch Keypads Waterproof Standalone access control & Reader
Working Temperature: -30～60℃
Card Reader Type: 125Khz & 13.56Mhz
Product Size: 114.5*69.5*18mm(L*W*H)
Product Weight: 420g

INQUIRY

Description

Specifications

It can work under salt-spray environment, won't rust for 10 years because of its corrosion and oxidation resistance aluminum case.

· User Capacity : 1010 (10 group of Anti-duress users)
· Operating Voltage : 12V~28V AC/DC
· Idle Current : <35mA
· Radio Technology : 125KHz &13.56Mhz
· Read Range : 3~6 cm
· PIN length : 4 – 6 digits
· Wiegand Input/output : 26-37 bits(Factory default : Wiegand 26 bits)
. Anti-static up to 15KV
· Keys Output : 4bits, 8bits, 10 digits virtual card number (Default 8 bits)
· Relay One relay (NO/NC/COM)
· Waterproof Conforms to : IP68
· Metal Casing : Aluminium-Alloy , Unit Weight 200g(Wide)
· Card type: EM&HID, EM&HID&Mifare or Mifare for optional
· Multi-function, can be use as reader; single door controller, anti-pass back, etc,

• Operating voltage: 12V~28V AC/DC
• Idle current: ≤70mA（DC12V）
• Operating Temperature: -30～60℃
• Alarm output: ≤1A
• Read range: 3~6cm
• Static Test: 15KV
· Operating Temperature : -40°C ~ 60°C (-40°F ~ 140°F)
· Operating Humidity : 0 ~ 98%RH
· Dimensions : 114.5*69.5*18mm(L*W*H)
