Proximity Reader

> Access Control > Proximity Reader

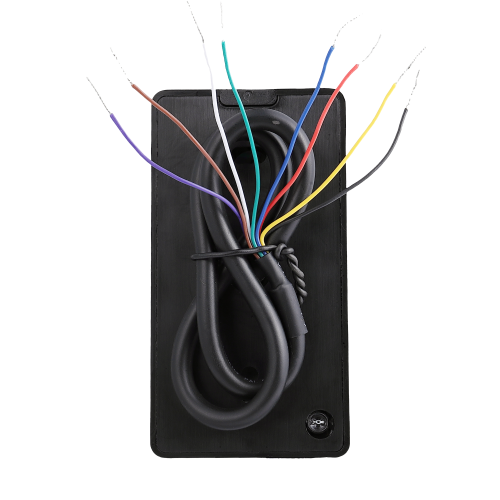

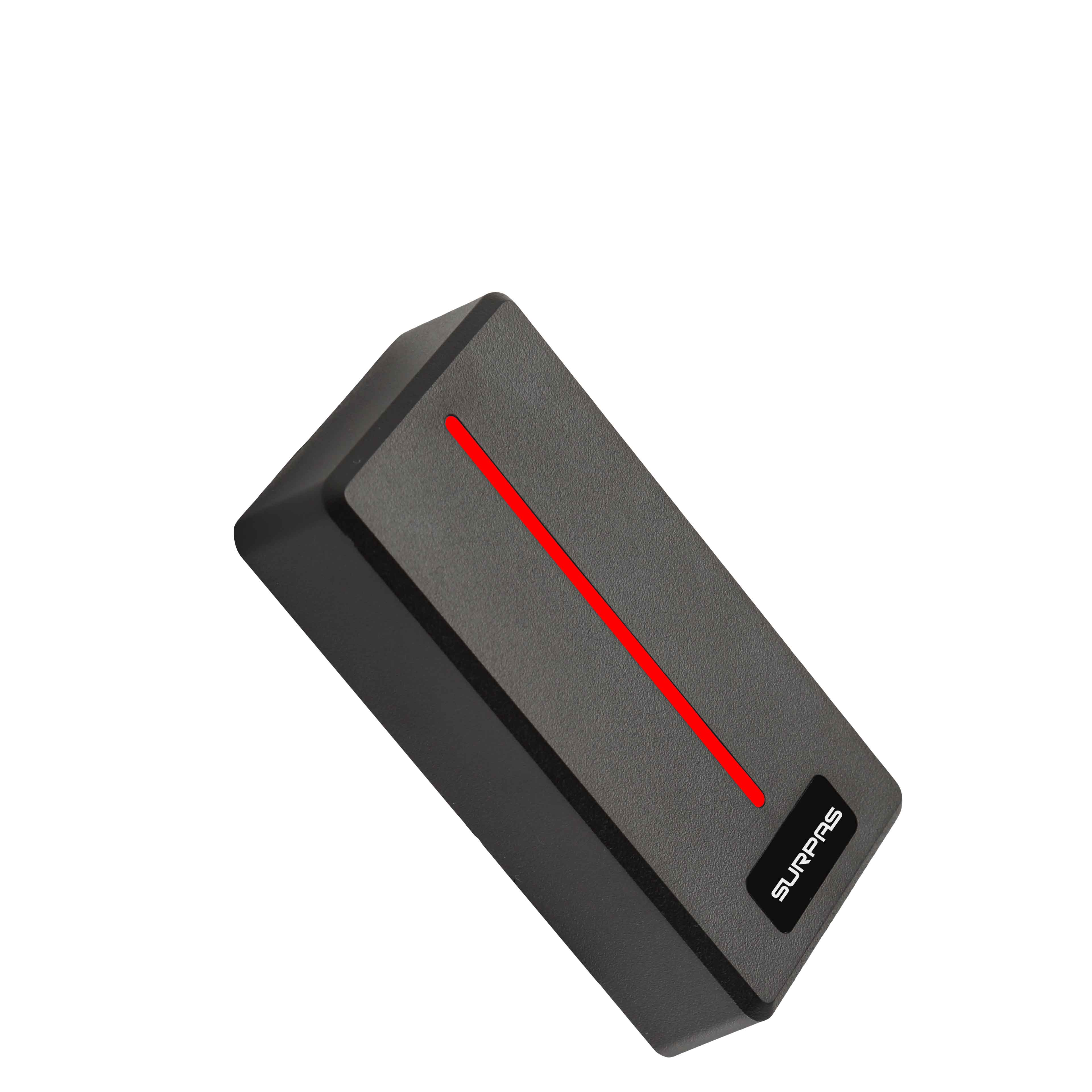

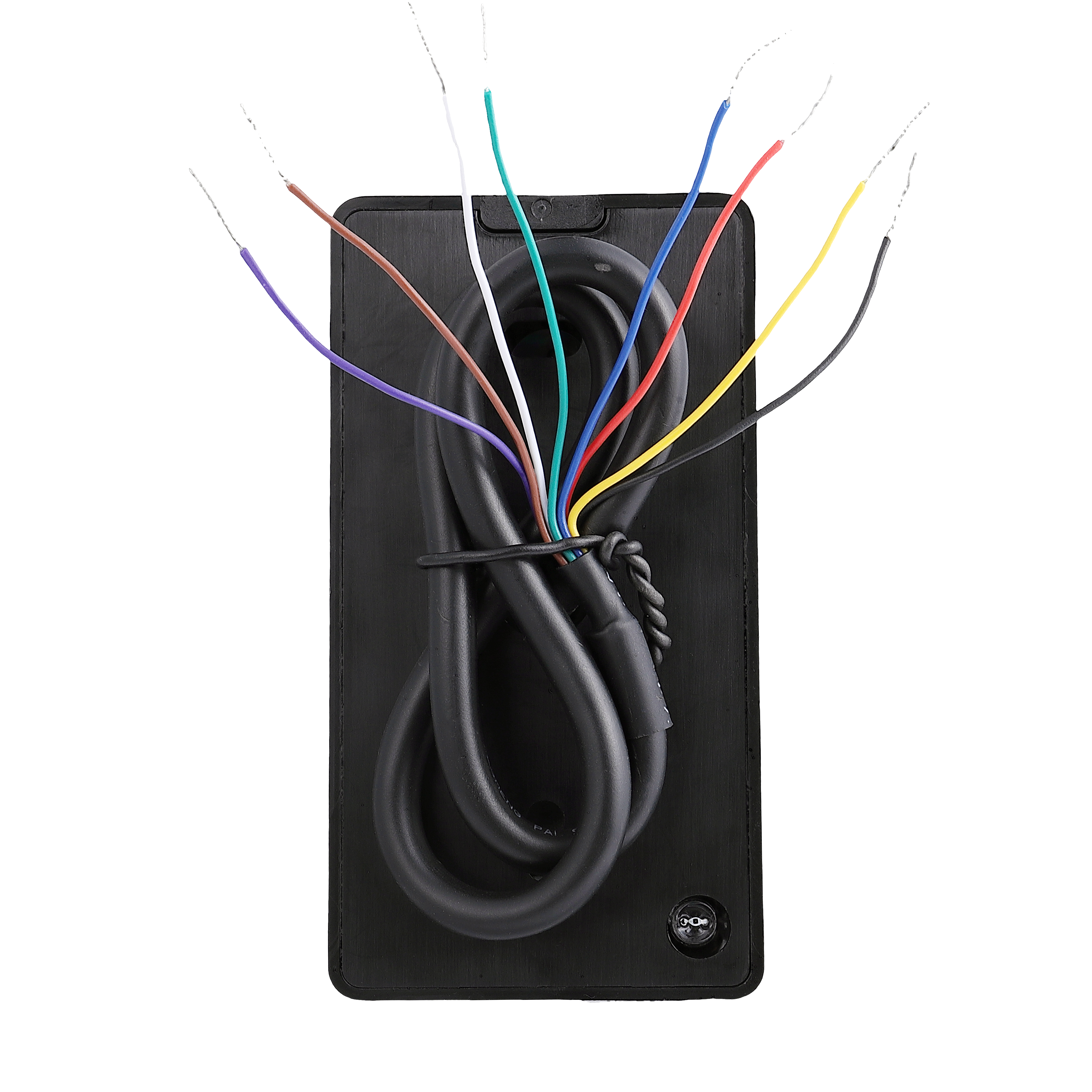

SR-OS2 ABS Waterproof OSDP Multi-Tech Reader with Blutooth,NFC,IC card

Product Model: SR-OS2
Product Name: OSDP Multi-Tech Reader
Working Temperature: -35～60℃
Card Reader Type: Mifare/DESFire/EV1/EV2/EV3/MIFARE Classic EV1,NFC,CPU
Product Size: L95*W50*H20 mm
Product Weight: 180g

INQUIRY

PDF Format

Description

Specifications

• Multi-tech reader that provide the widest compatibility with nultiple credential types
• Waterproof, Conform to IP67
• Support 13.56MHz Mifare card DESSFire EV1/EV2/EV3,Mifare Class EV1,NFC,CPU cards
• No third-party portal or licensing required and no recurning fees
• Built-in Bluettoth&WiFi Chip, integratable
• Multi-factor authenication(customizable)
• Easily configurable, OTA uprade.
• Two color LED control and buzzer control inputs
• Optical back tamper sensor
• Low power consumption and long life-span
• IP67 Waterproof and dust resistant
• Outpu formats: Wiegand or OSDP via RS-485

• CPU: Xtensa 32-bit LX7 Dual Core Processor
• Transmit Frequency :13.56MHz/ 2.4G
• Read Range: 2~6CM
• Protocol: Wiegand /OSDP
• Power Supply: DC6-30V
• Compatible Cards: Mifare/DESFire/EV1/EV2/EV3/MIFARE Classic EV1,NFC,CPU
• Max Cable Distance to Controller: OSDP 500M, NG:100M
• Idle Current: ≤20mA
• Operating Temperature: -35 ℃-60℃
• Operating Humidity:0~95%（non-condensing）
• Certificates:CE, RoHs, FCC
• Cable Distand: Wiegand 150m(500ft)(24AWG)
