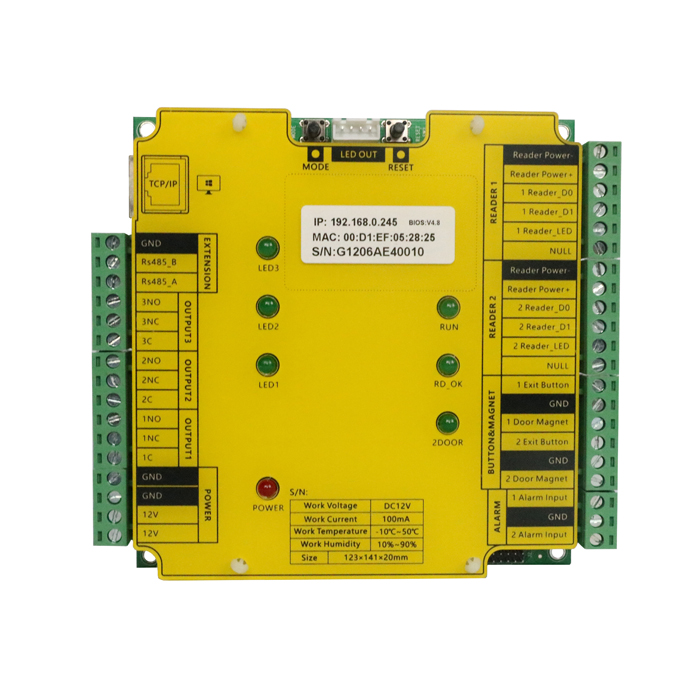

SP-G2 Two Door Network Access Controller
SP-G2 Two Door Network Access Controller

SP-G2 Two Door Network Access Controller

Product model: SP-G2
Product name: TCP/IP - Two Door Network Access Controller
Working temperature: - 10 ~ 55 ° C
Communications: TCP/IP
Product size: L123 * W141 * H20 mm
INQUIRY
Description SPECIFICATION
• Connects 2 readers in/out for 1 doors
  Or connect 2 readers to entry for 2 doors
• User capacity: 20000
• Records: 50000
• Card users: 20000
• Alarm records:  20000
• Communication protocol: TCP/IP
• Wiegand Interface: 26/34
• Working voltage: DC10~15V
• With Software, support SDK, Multi-language software.
• Support RS485 extended communication protocol

• CPU: ARM32bit
• Working Temperature: - 10 ~ 55° C
• Operating Humidity: 10%-90%(non - condensing )
• Antistatic Inteferce: ≥15KV
• Relay Output Port: 3
• Door Contact Input: 2
• Alarm Input: 2
• Support Reader Quantity: 2
