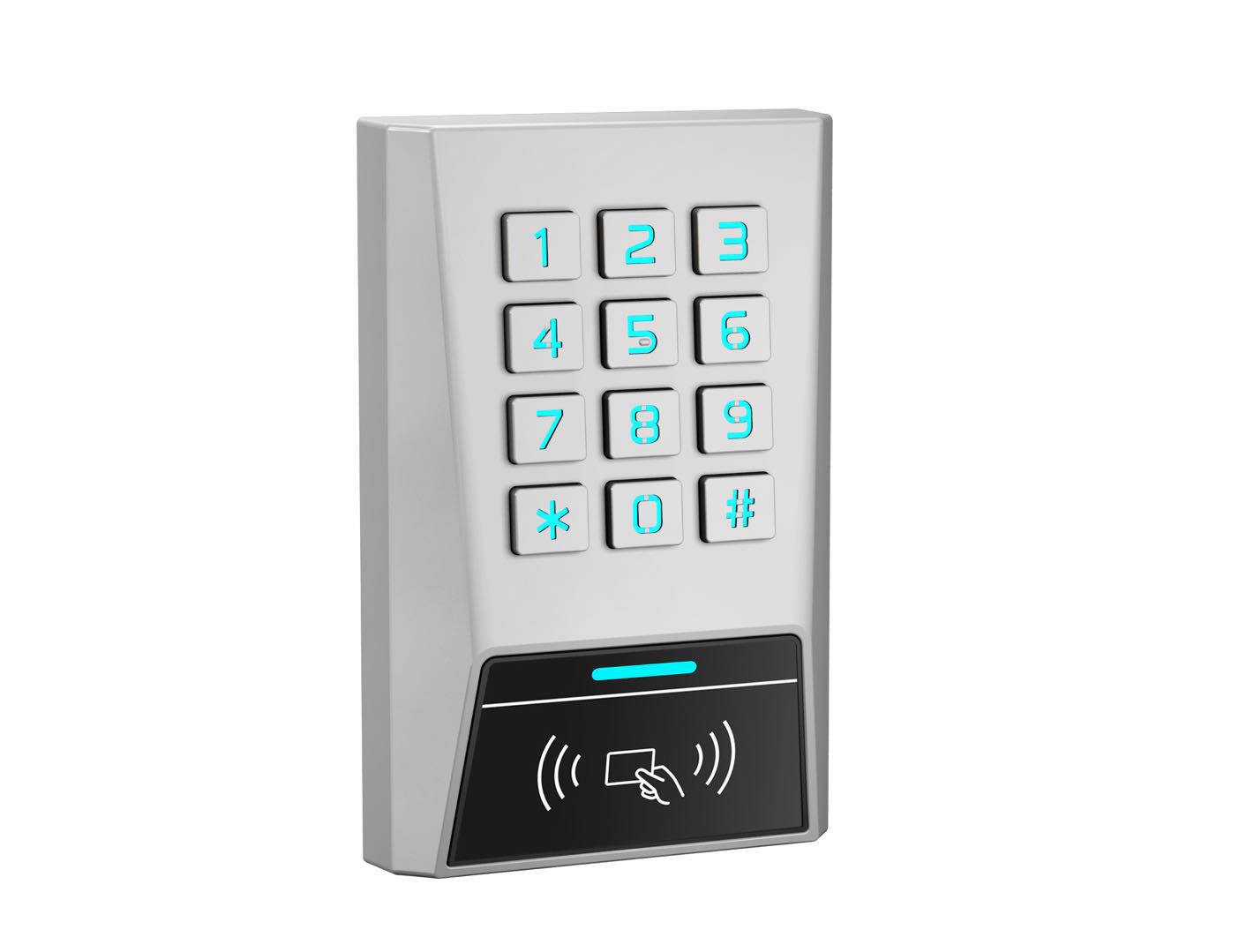

Bluetooth module,Mobbile app to aperate and access(MK1-EH-BT model)
Fashionable & patent design
Metal case, Anti-vandal
One relay, keyboard programmer
Waterproof,conforms to IP66
1010 users (1000 common users + 10 group of Anti-duress users)
Card type:
EM version:125KHz EM card
HID & EM version: 125KHz HID &EM cards
PIN Length: 4-6 digits
Wiegand 26-37 bits input&output
Keys output : 4 bit,8 bits or 10 digits virtual card number
Can be used as Wiegand reader with LED & buzzer output
Card block enrollment
Tri-color LED status display
Wide range Voltage: 12-28V AC/DC
Integrated alarm & buzzer output
Pulse mode, Toggle mode
User data can be transferred
2 devices can be interlocked for 2 doors
Built in LDR （light dependent resistor）for anti-tamper
Backlit keypad
Low temperature resistance
User Capacity: 1010 users (10 group of anti-duress users)
Operating Voltage: 12V-28V AC/DC
Idle Current :< 35mA
Card Type: 125KHz EM or 125KHZ HID&EM
Read Range: 3-10 cm
PIN length: 4-6 digits
Wiegand Input/output: 26-37 bits (factory default: wiegand 26)
Keys Output: 4 bits,8bits,10 digits virtual card number
Relay: one relay(NO/NC/COM)
Waterproof: conforms to IP66
Metal Casing: Zinc-Alloy
Operating Humidity: 0-98%RH
Dimensions 115*75*23mm (L*W*H)
Unit Weight: 360g
Shipping Weight: 440g
