Metal Touch Keypad Standalone Access Control/Reader Support Wifi/Tuya App
Metal Touch Keypad Standalone Access Control/Reader Support Wifi/Tuya App Metal Touch Keypad Standalone Access Control/Reader Support Wifi/Tuya App Metal Touch Keypad Standalone Access Control/Reader Support Wifi/Tuya App Metal Touch Keypad Standalone Access Control/Reader Support Wifi/Tuya App

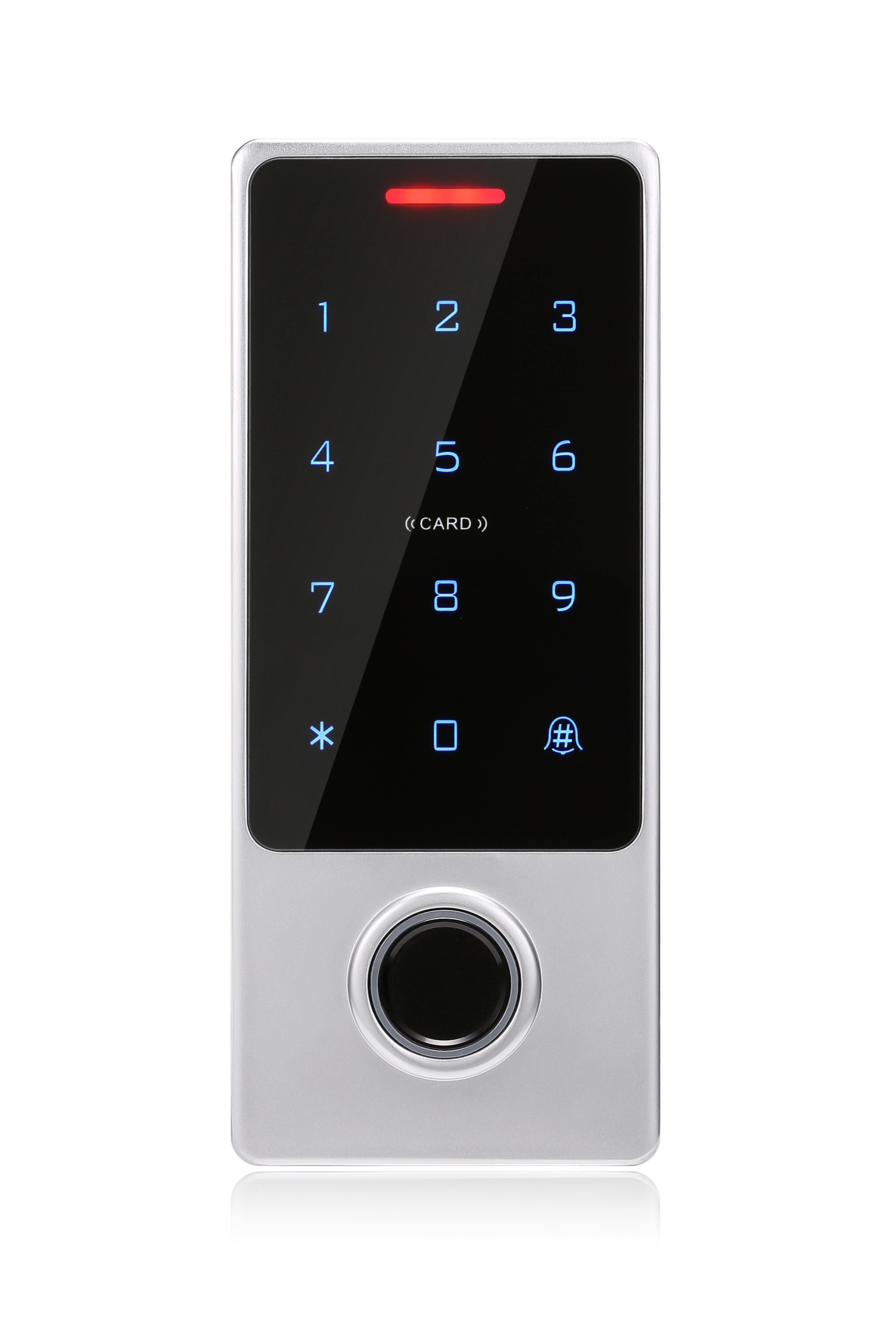

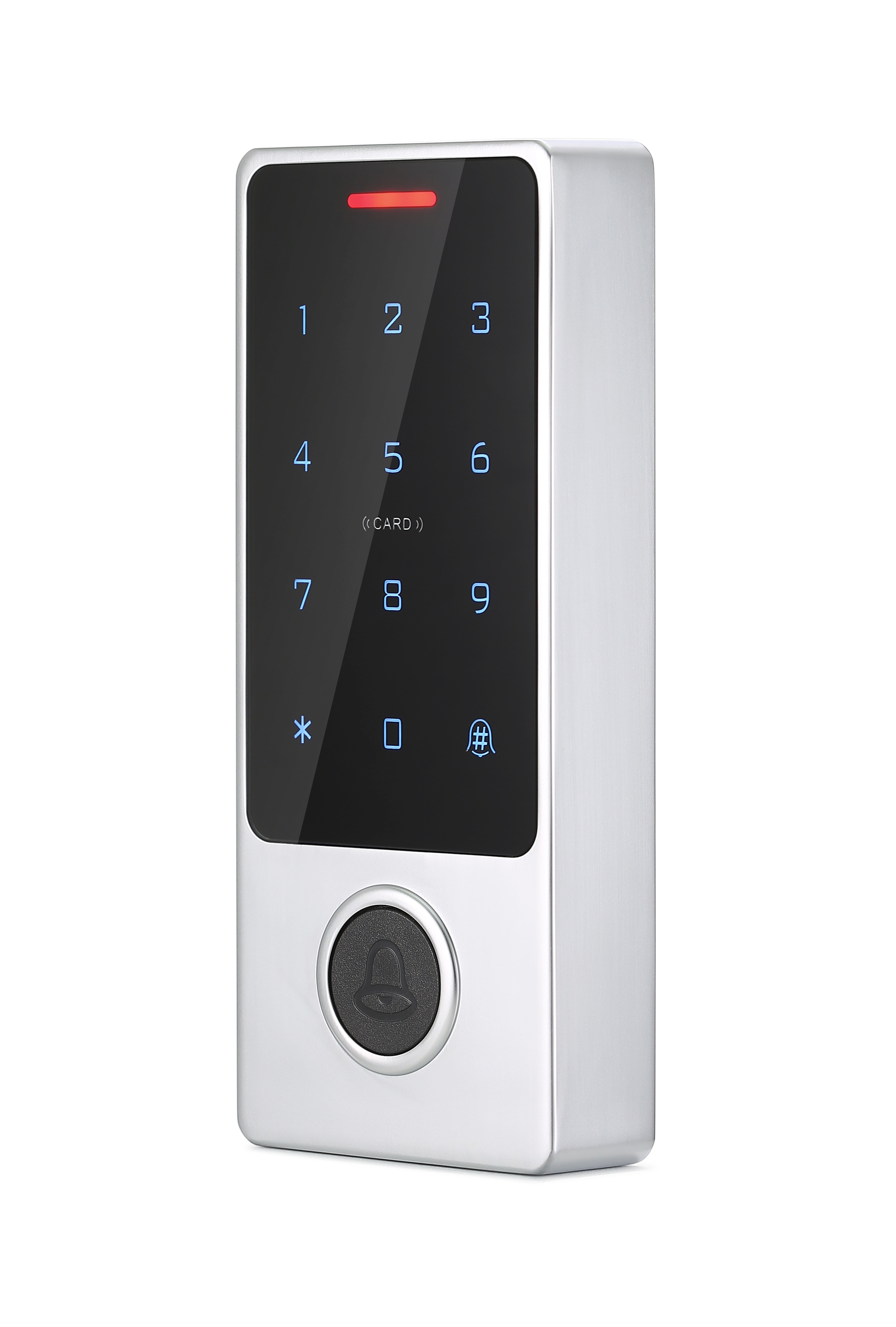

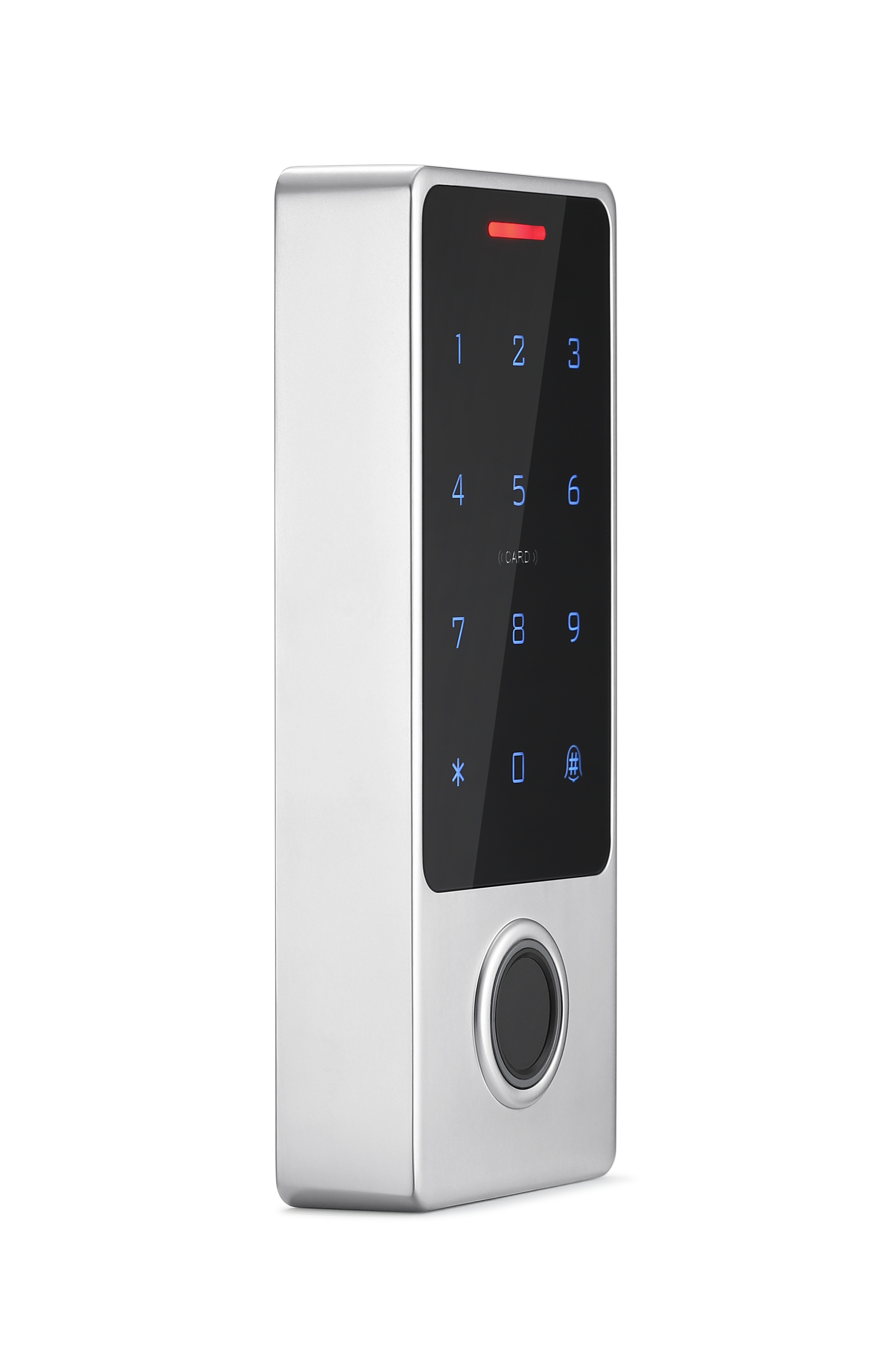

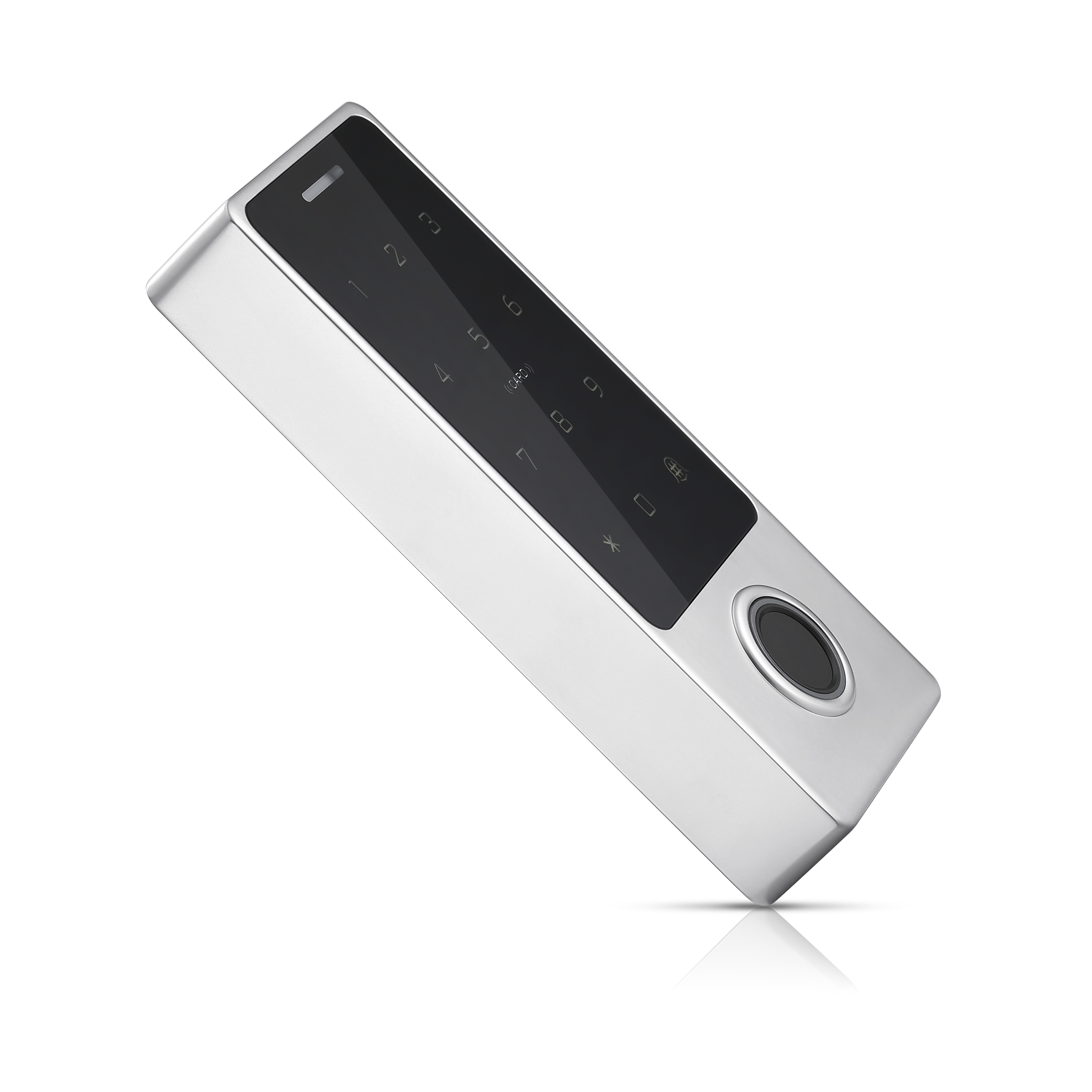

Metal Touch Keypad Standalone Access Control/Reader Support Wifi/Tuya App

Item No.: SF-20D
This SF-20D is a WIFI Access Control/Reader support EM/Mifare card, it is made by zinc alloy, support Tuya/wifi PIN Cards Smart phone open the door.
Door status check(Over The Air)management can Open door by visitor users
INQUIRY
Description Specification
APP users management
Supports OTA online upgrade(The users can upgradetheir devices by themselves if there is better functionalapplications)
Set the open period of PIN code
Metal case,Anti-vandal,and Anti-explosion
Waterproof,Conforms to IP67
Support 125KHz EM or 13.56MHz Mifare cards
Large User Capacity:10000
Wiegand 26-44 bit,56bit,58 bit input/output
Pulse Mode and Toggle Mode
F20D with door bell function
F20 without door bell function


Operating Voltage:DC10V-24V
Operating Temperature:-20℃～60℃(-4°F～140°F)
Dimensions:L131×W55×H20(mm)
