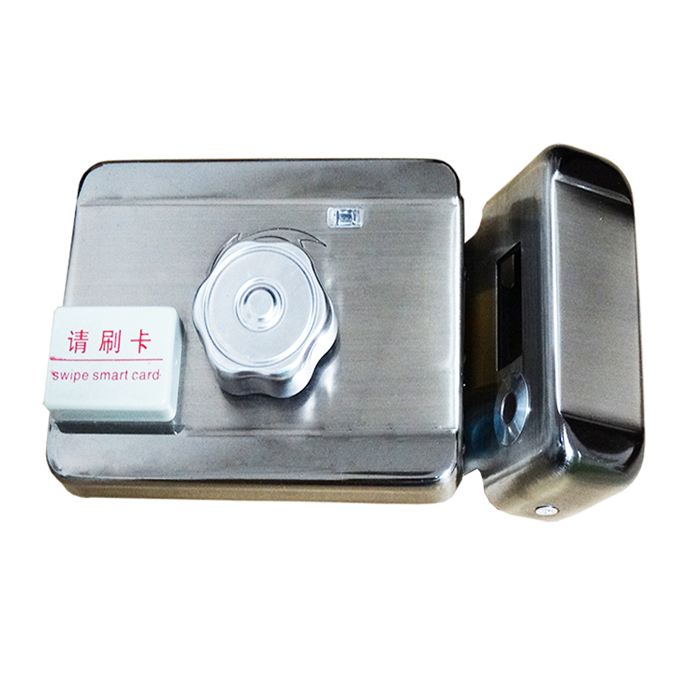

MEL-04 All-In-One Electric intelligent lock can swipe card with motor and sensor

INQUIRY
Input Voltage: DC12V+20%
Working Current: 80mA
Unlock Current: 350mA
Suitable Temp: -40℃-70℃
Humidity: 0~95%(non-condensing
)

RF card door opening response time < 0.5S card reading distance 20mm
Remote control door response time < 0.3S  accessibility distance > 100m
Alarm Output Current: < 1500mA
Alarm Accuracy Rate: ≥99.9%
IEC801-5 standard of anti surge
Immunity: IEC801-5 standard
Sensitivity:1S
Length of lock tongue:22mm
Lock type:Induction to lock
Weight:1.1kg
Service life:500,000 times
Lower noise
