EM-350M Single Door Electromagnetic Lock with Mortise Mount Home > Lock > Electromagnetic Lock

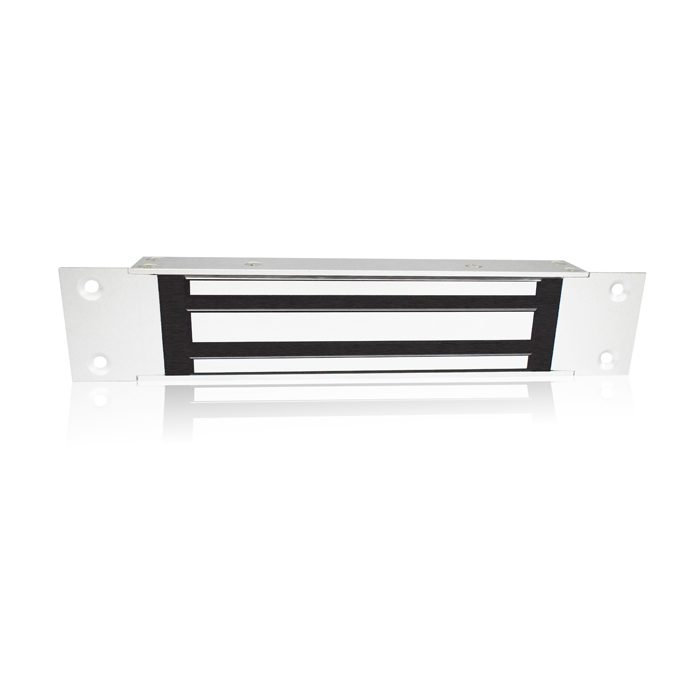

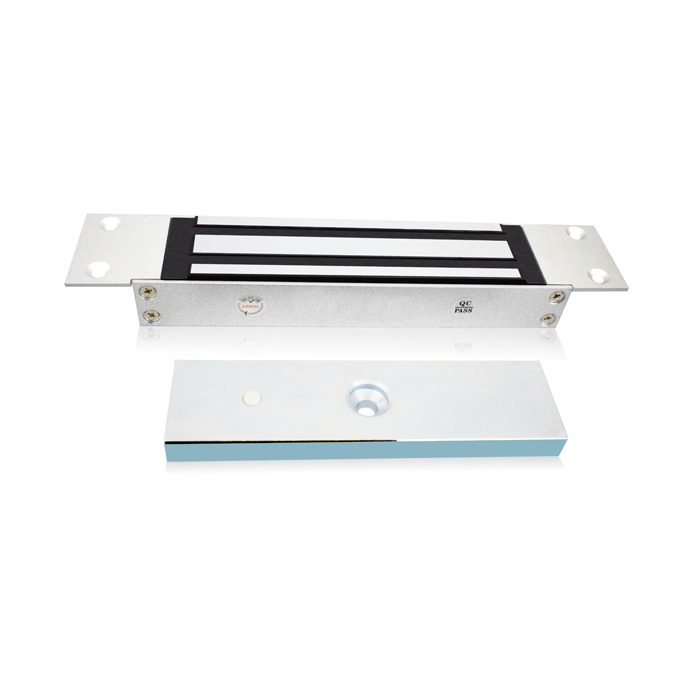

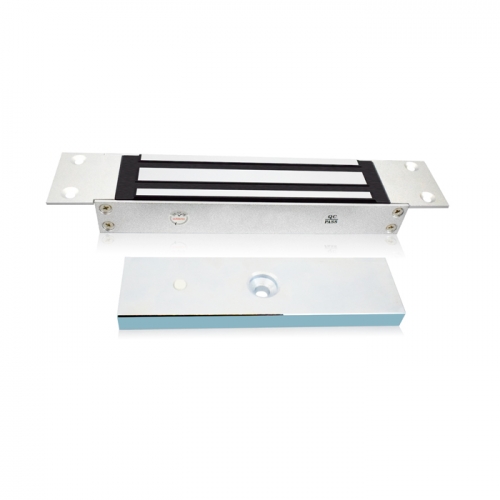

EM-350M Single Door Electromagnetic Lock with Mortise Mount

INQUIRY
Quick Details

Lock Dimension:L256*W50.5*H29.5mm
Armature Plate Dimension: L156*W43*H13mm
Input Votage DC12V+10% or DC24V+10%
Working Current: 12V/600mA or 24V/300mA
Holding Force:350KG(800Lbs)
Surface Temp: ≤ +20℃ (Based on ambient temperature)
Operating Temp:  -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Weight: 1.9KG
Bracket Optional: BK-350Z
LED Status: Red(Open),Green(Close)
