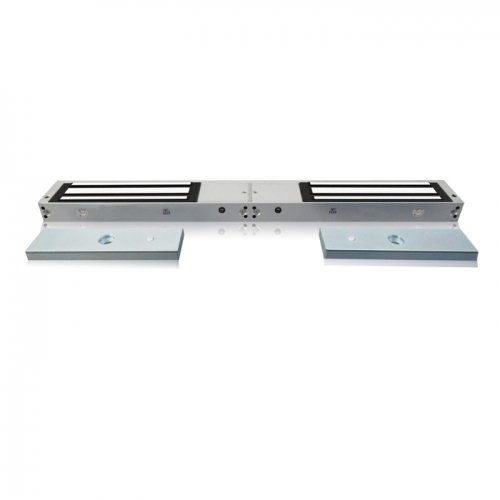

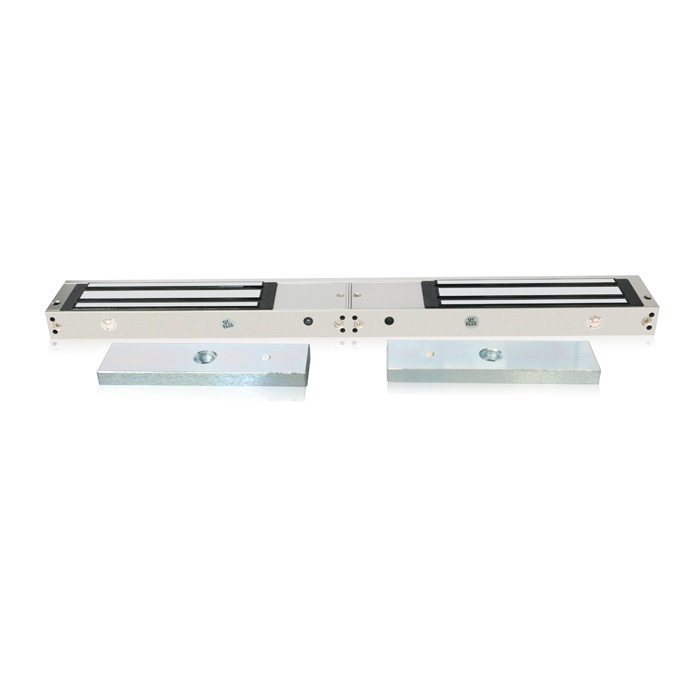

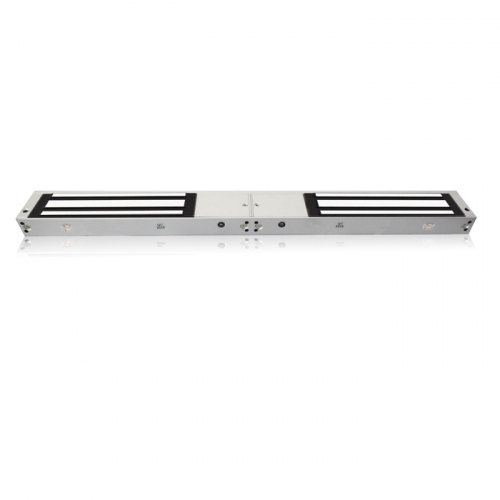

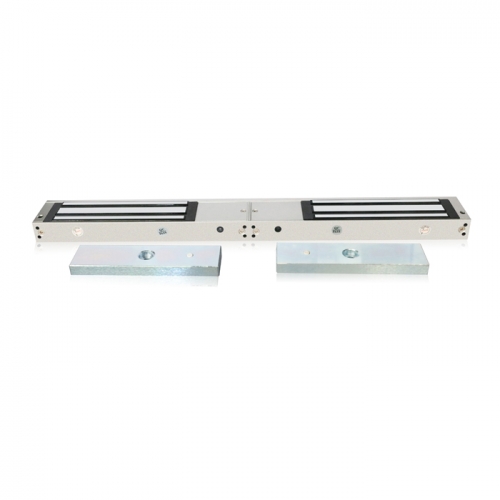

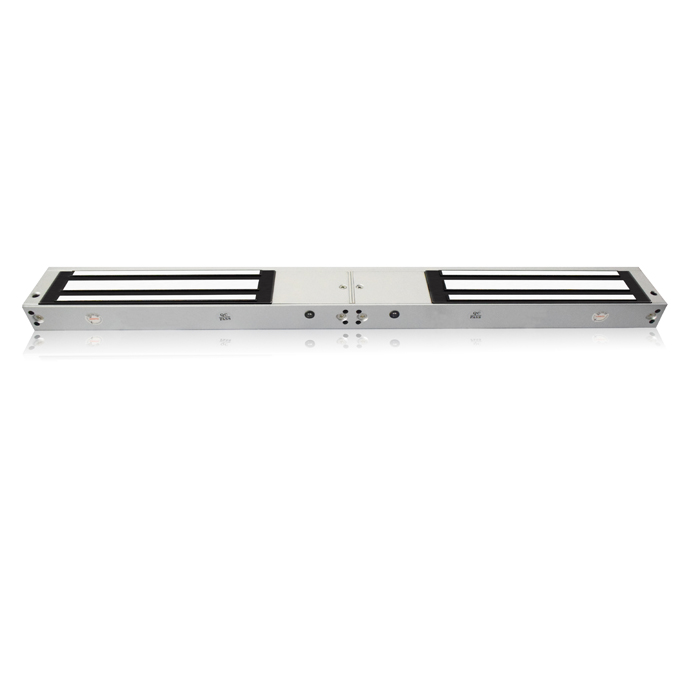

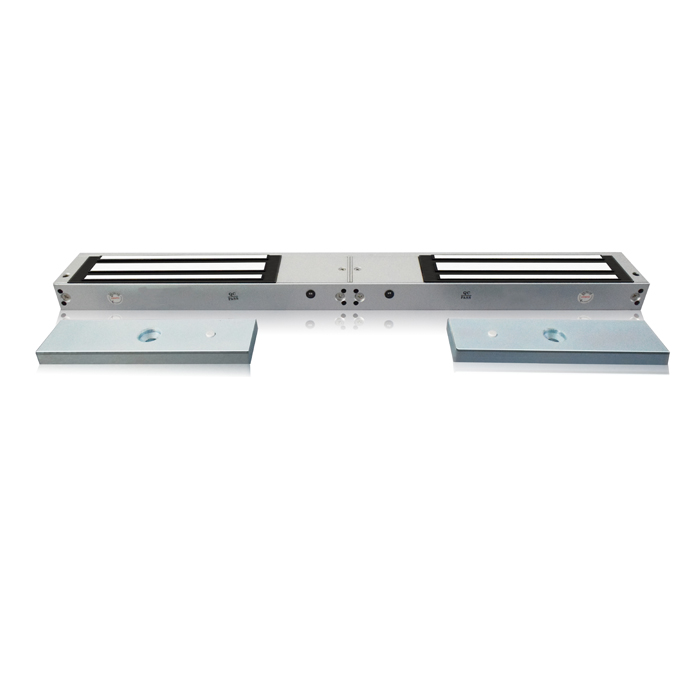

EM-350DS Double Door Electromagnetic Lock with Lock Status Signal Output

INQUIRY
Quick Details

Lock Dimension:L500*W58*H25mm
Armature Plate Dimension: L158*W43*H11mm
Input Votage DC12V+10% or DC24V+10%
Working Current: 12V/1200mA or 24V/600mA
Holding Force:350KGx2(800Lbsx2)
Surface Temp: ≤ +20℃ (Based on ambient temperature)
Operating Temp:  -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Weight: 4.2KG
Bracket Optional:B -350ZL/350Z/350L
LED Status: Red(Open),Green(Close)
Door status signal output for optional
Time delay seting: 0/3/6/9 seconds for optional
