Electromagnetic Lock

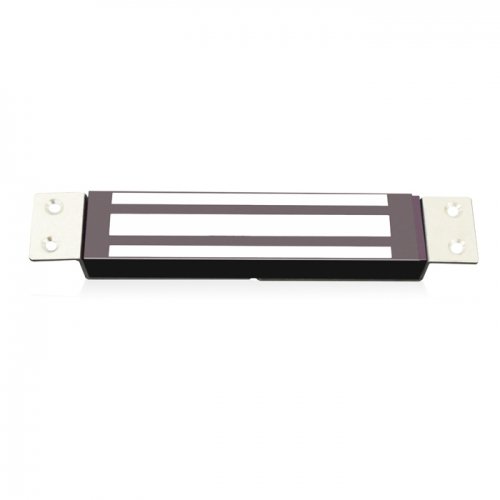

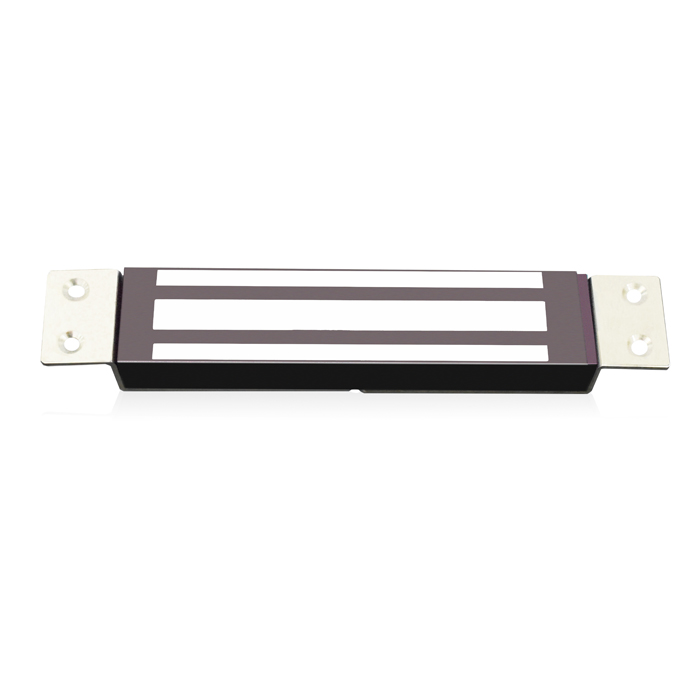

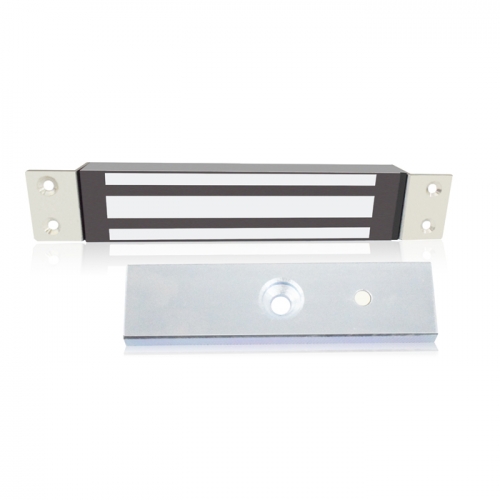

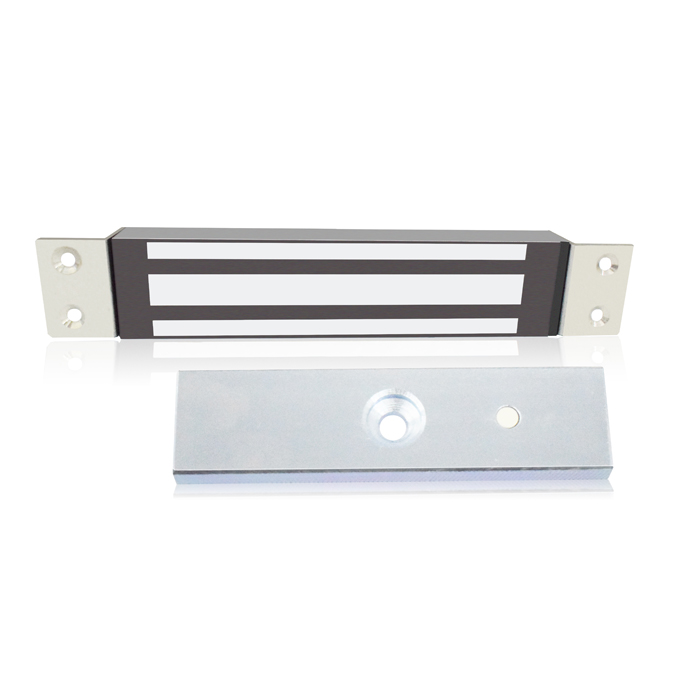

EM-280MS Single Door Electronmagnetic Lock with Mortise Mount Lock Status Signal Output
  • EM-280MS Single Door Electronmagnetic Lock with Mortise Mount Lock Status Signal Output
  • EM-280MS Single Door Electronmagnetic Lock with Mortise Mount Lock Status Signal Output

EM-280MS Single Door Electronmagnetic Lock with Mortise Mount Lock Status Signal Output

INQUIRY
Quick Details

Lock Dimension:L250*W43*H27.5mm
Armature Plate Dimension: L180*W38*H13mm
Input Votage: DC12V+10% or DC24V+10%
Working Current: 12V/450mA or 24V/230mA
Holding Force:280KG(600Lbs)
Surface Temp: ≤ +20℃ (Based on ambient temperature)
Operating Temp:  -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Weight: 1.7KG
Bracket Optional: BK-280Z
