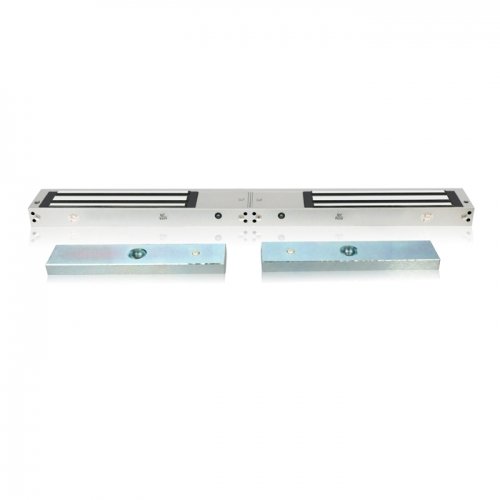

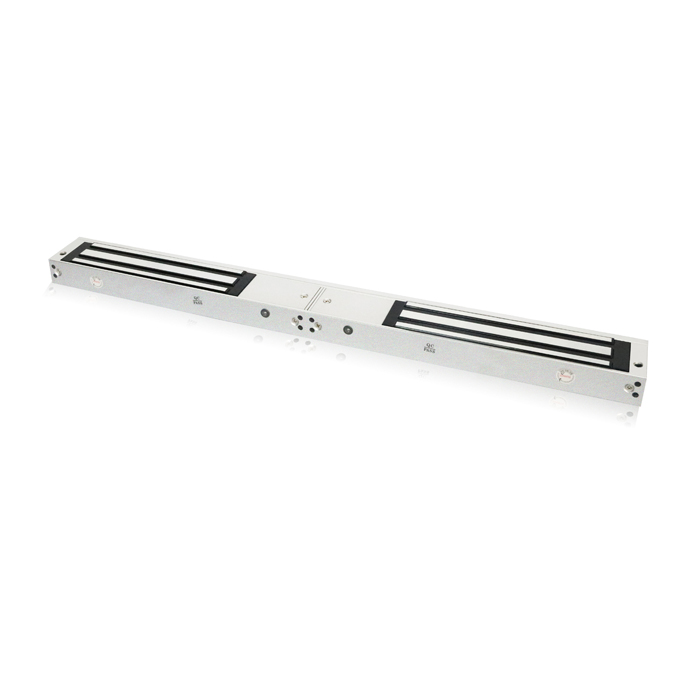

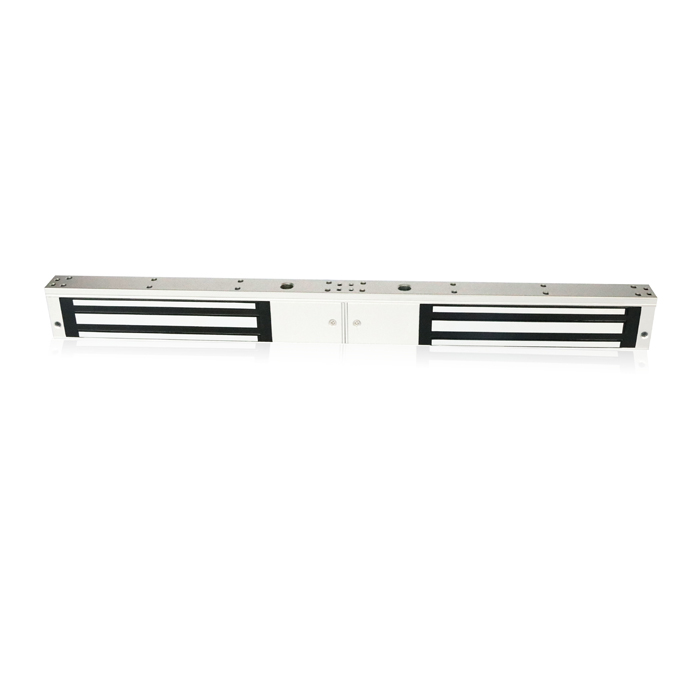

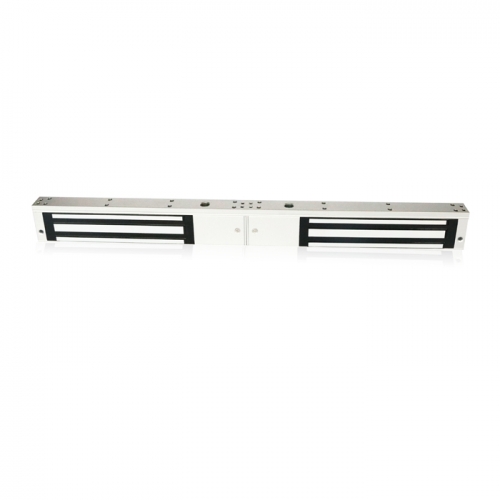

EM-280DST Double Door Electronmagnetic Lock with LED And Lock Status Signal Output,Time Delay

INQUIRY
Quick Details

Lock Dimension:L500*W47.5*H27mm
Armature Plate Dimension: L180*W38*H13Hmm
Input Votage: DC12V+10% or DC24V+10%
Working Current: 12V/900mA or 24V/300mA
Holding Force:280KGx2(600Lbs)
Surface Temp: ≤ +20℃ (Based on ambient temperature)
Operating Temp:  -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Weight: 3.6KG
Bracket Optional:BK-280ZL/280Z/280L/280U
LED Status: Red(Open),Green(Close)
