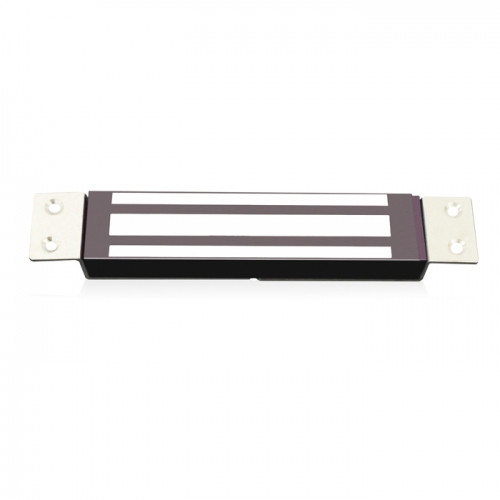

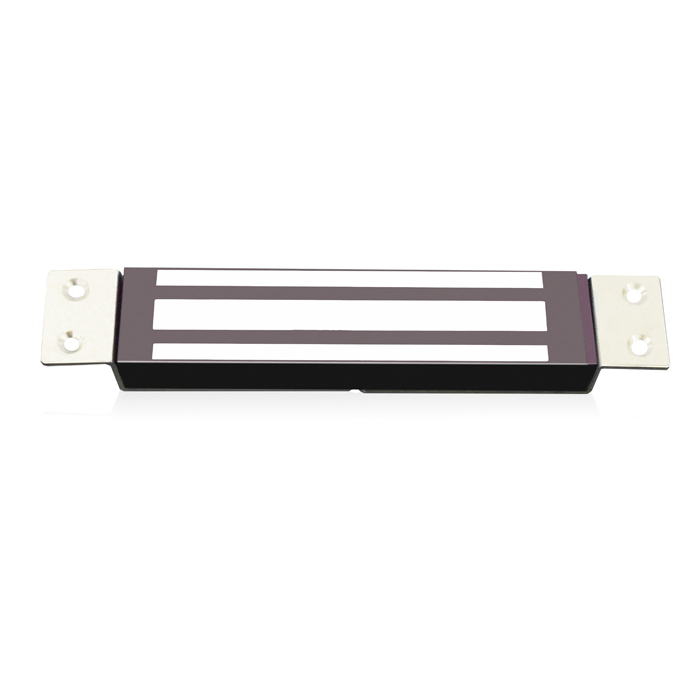

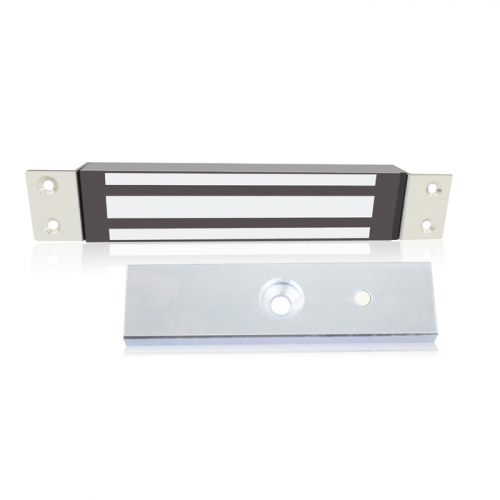

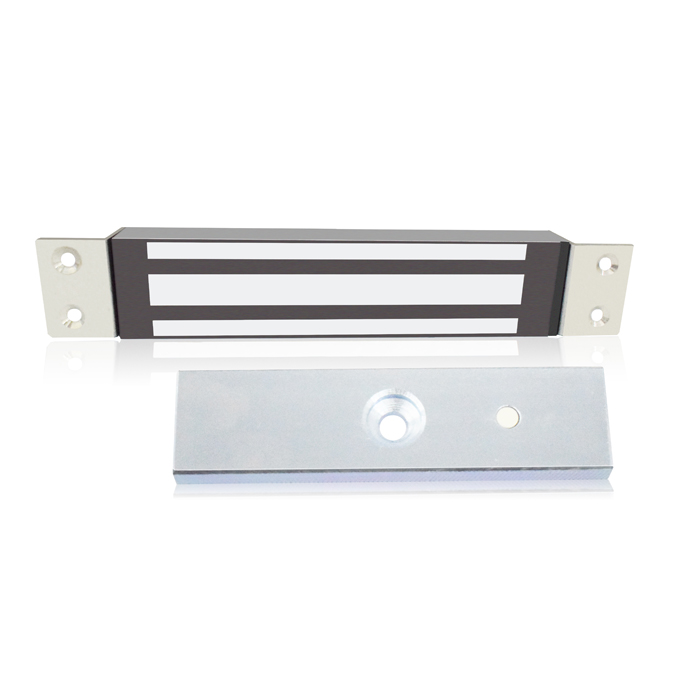

EM-180M Single Door Electronmagnetic Lock with Mortise Mount

INQUIRY
Quick Details

Lock Dimension: L189*W33*H21.5mm
Armature Plate Dimension: L130*W33*H11.5mm
Working Votage: DC12V / 260mA or DC24V/130mA
Holding Force:180KG(350Lbs)
Surface Temp: ≤ +10℃ (Based on ambient temperature)
Operating Temp:  -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Weight: 1.1KG
Secure Type: Fail Safe
Bracket Optional: BK-180Z
