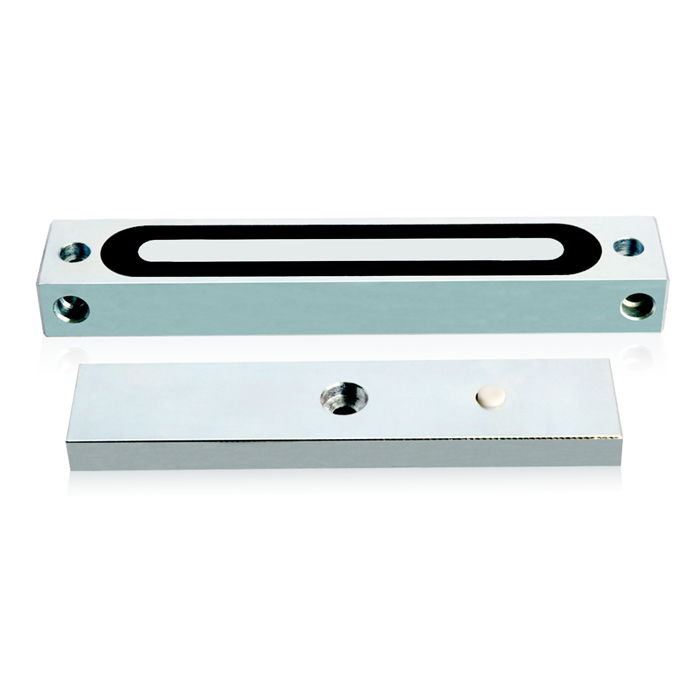

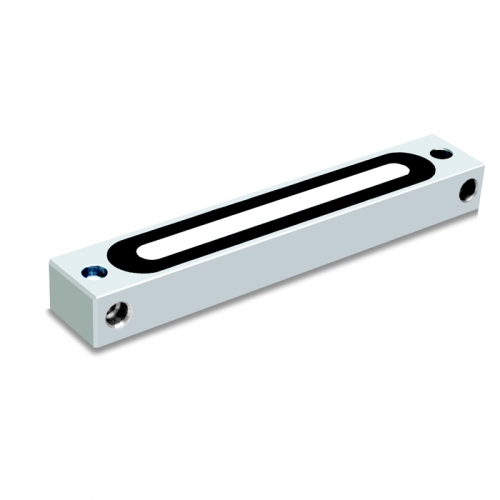

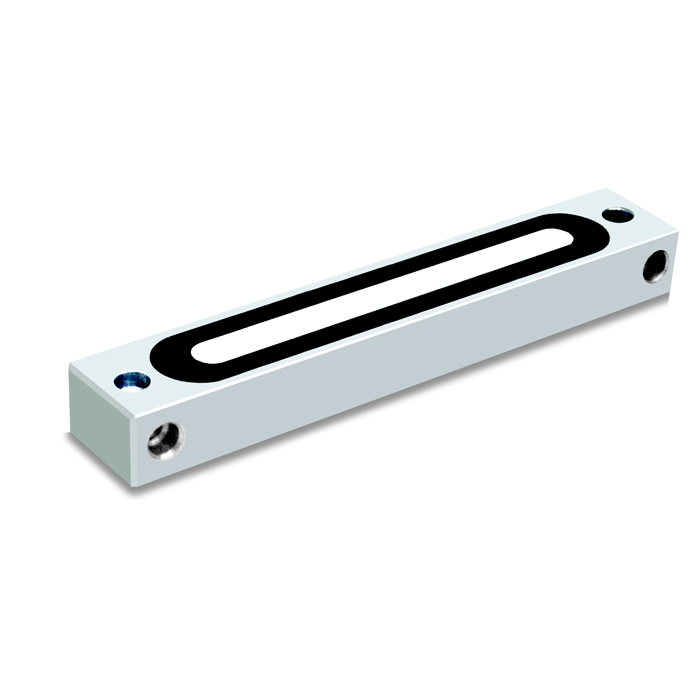

Quick Details
• Lock Dimension: L160*W28*H18.5mm
• Armature Plate Dimension: L130*W28*H11mm
• Working Votage: DC12V / 250mA
• Holding Force:110KG（240Lbs)
• Surface Temp: ≤ +10℃ (Based on ambient temperature)
• Operating Temp: -10~+55℃(14-131F)
• Humidity: 0~90%(non-condensing)
• Weight: 0.9KG
• Waterproof Electromagnetic lock for outdoor
• Bracket Optional: B-110ZL/110Z/110L.
• Door status signal output
