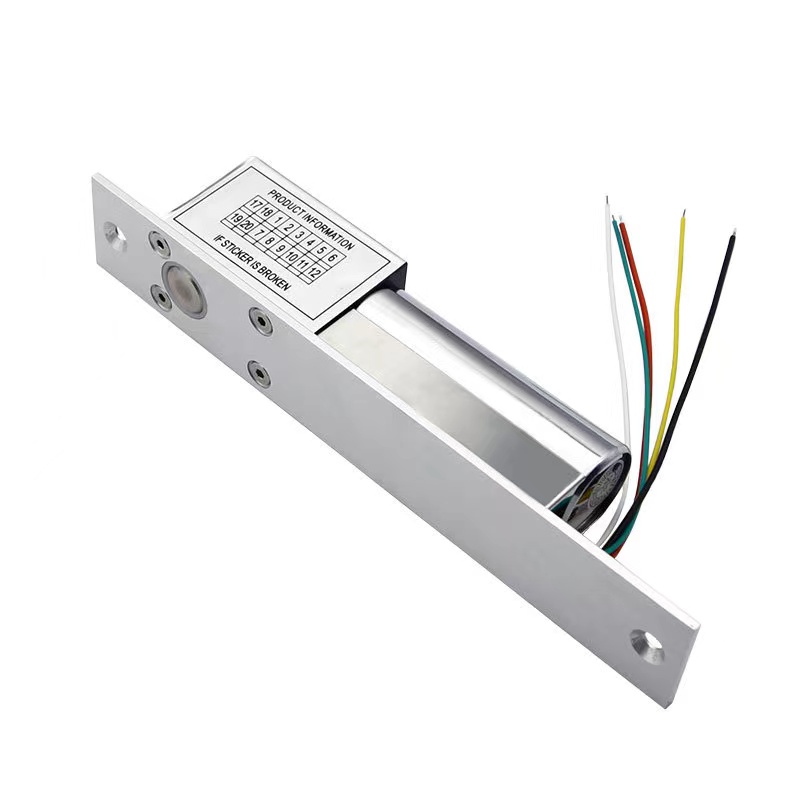

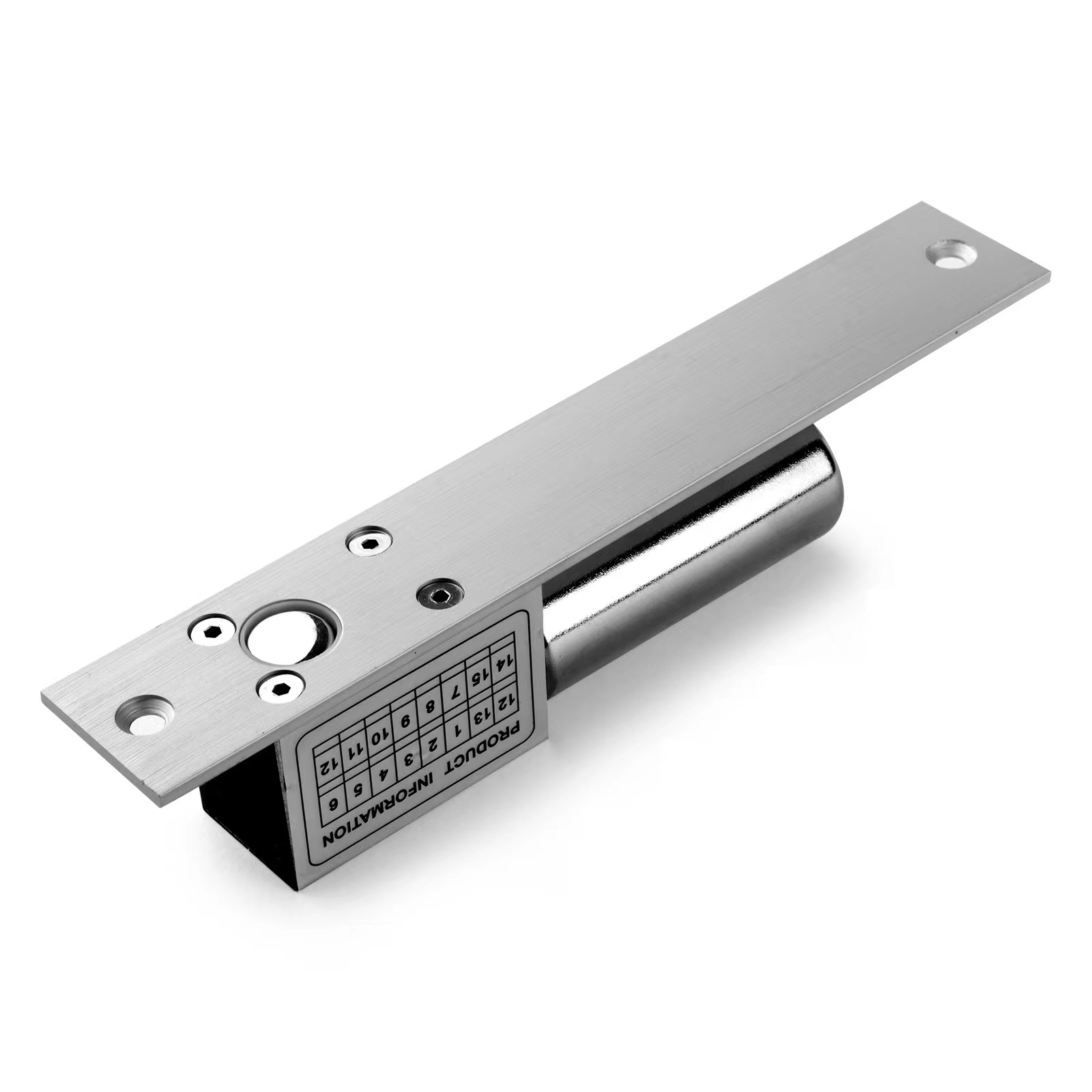

EB-300ST Electrick Bolt Lock With Lock Status Signal Output And Time Delay
EB-300ST Electrick Bolt Lock With Lock Status Signal Output And Time Delay EB-300ST Electrick Bolt Lock With Lock Status Signal Output And Time Delay

EB-300ST Electrick Bolt Lock With Lock Status Signal Output And Time Delay

INQUIRY
Description
• Face Plate Dimension: L205*W34*H41.5mm
• Strike Dimension: 90Lx25Wx1.5Hmm
• Input Voltage： DC12V+10%
• Start Current: 900mA
• Standby Current: 100mA
• Time delay function: 0,3,6,9 secs
• Solid Bolt: polishing housing, 800Kg Holding Force
• Suitable For: Wooden Door,Glass Door,Metal Door,Glass Door
• Surface Temp :Low Temperature
• Induction Distance: 8mm
• Operating temp :-10～+55℃(14~131F)
• Operating Humidity: 0～90%(non-condensing)
• Special Designed :Tested to 500000 cycles
• Face place material: High Aluminum,Carrulous Line Finished
• Weight :0.54kg
• Braket:BK-01/BK-01B/BK-02
• Lock status signal output
